Replace Main Circuit Coolant - AP20.00-P-2082D
ENGINE 157, 276.8, 278, 642 in MODEL 292
Shown on engine 157
| Risk of injury to skin and eyes suffering scalding from contact with hot coolant spray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Notes on coolant | AH20.00-N-2080-01A | ||
| Check | |||

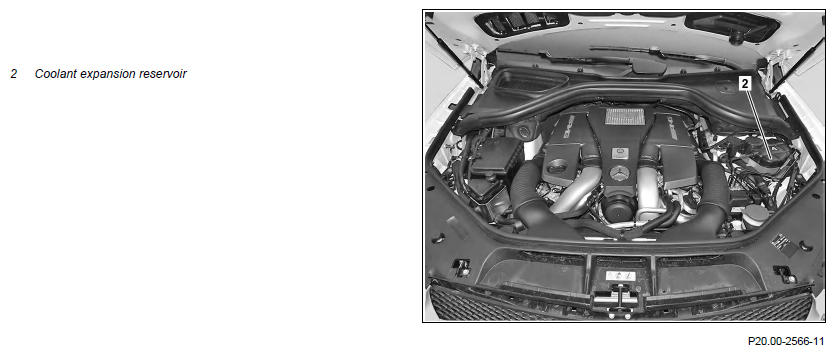

| 1 | Check coolant level in coolant expansion reservoir (2) | AP20.30-P-2050C | |
| Draining | |||
| 2 | Drain coolant | ||
| AR20.00-P-1142GQ | |||
| Filling | |||
| 3 | Pour in new coolant | AR20.00-P-1142GQ | |
| Coolant specifications | BB00.40-P-0310-01A |
