Remove/Install Charge Air Temperature Sensor Upstream Of Throttle Valve - AR09.41-P-2009GQ
ENGINE 642 in MODEL 292

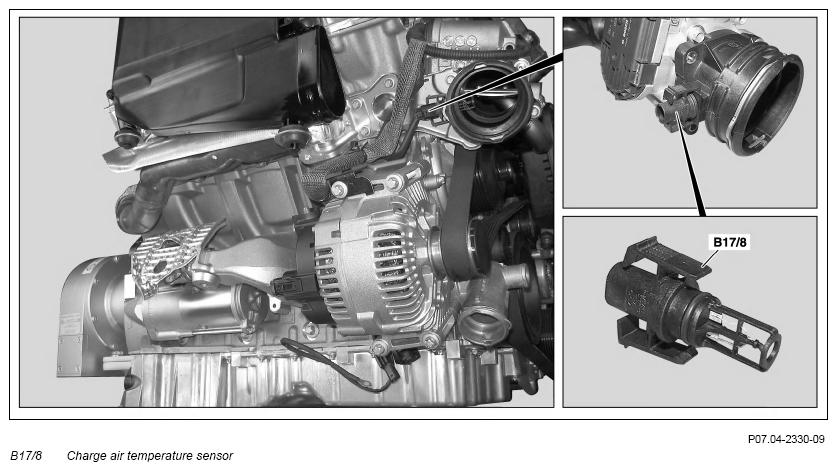

Shown on model 166.024
| Remove/install | |||
| 1 | Remove engine cover | Engine 642 in model 292 |
AR01.10-P-2405RTB |
| 2 | Remove engine air intake duct upstream of right air filter housing | ||
| 3 | Disconnect electrical connector at charge air temperature sensor (B17/8) | ||
| 4 | Release charge air temperature sensor (B17/8) and pull out of the engine charge air duct housing downstream of the charge air cooler | ||
| 5 | Install in the reverse order | ||
| 6 |
Connect diagnostic system, read out fault memory and delete if necessary | Engine 642 in model 292 | AD00.00-P-2000-04A |
| 7 | Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. Carry out an engine test run |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A |
