Remove/Install Sensors For Blind Spot Assist - AR54.71-P-0100GQC

MODEL 292 with CODE 234 (Blind Spot Monitoring)

MODEL 292 with CODE 237 (Active Blind Spot Assist)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install

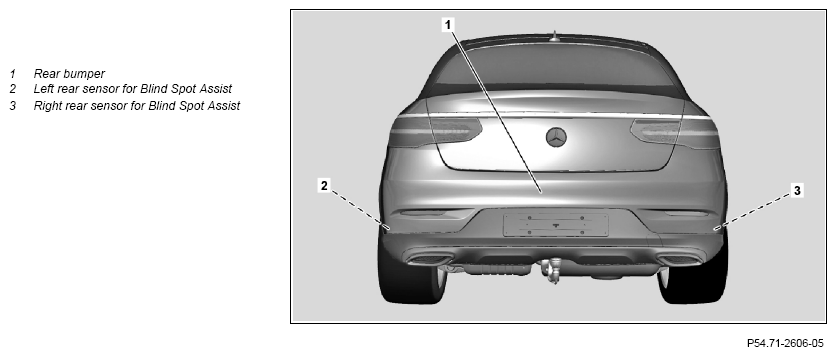

1	Connect diagnostic system and store basic data from right rear sensor for Blind Spot Assist (3) or from left rear sensor for Blind Spot Assist (2)	Only when replacing the right rear sensor for Blind Spot Assist (3) or the left rear sensor for Blind Spot Assist (2).
			AD00.00-P-2000-04A
2	Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m)

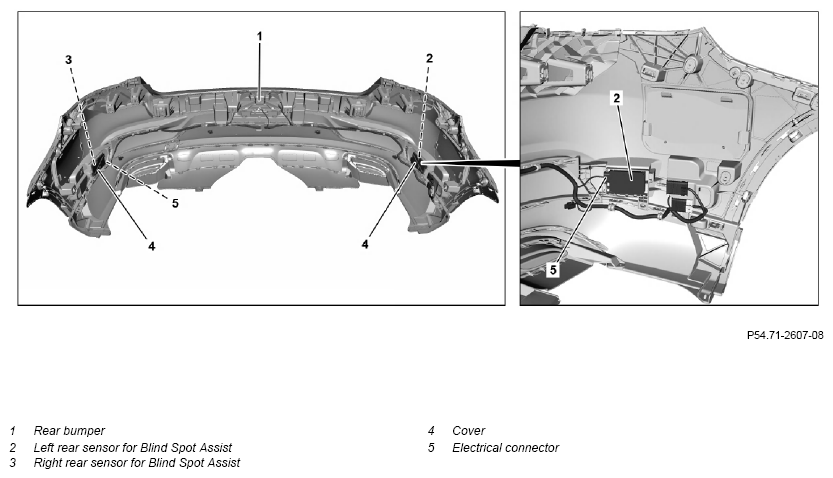

3	Remove rear bumper (1)		AR88.20-P-2200GQ
4	Remove cover (4)
5	Remove right rear sensor for Blind Spot Assist (3) or left rear sensor for Blind Spot Assist (2)
6	Disconnect electrical connection (5)
7	Install in the reverse order
	Initial startup
8	Transfer previously stored basic data to right rear sensor for Blind Spot Assist (3) or left rear sensor for Blind Spot Assist (2)	Only when replacing the right rear sensor for Blind Spot Assist (3) or the left rear sensor for Blind Spot Assist (2).
			AD00.00-P-2000-04A
9	Perform initial startup of right rear sensor for Blind Spot Assist (3) or left rear sensor for Blind Spot Assist (2)	Only when replacing the right rear sensor for Blind Spot Assist (3) or the left rear sensor for Blind Spot Assist (2).
