Remove/Install 12V Socket Of Rear Center Console - AR54.10-P-1004GQC

MODEL 292

	Remove/install
1	Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m)

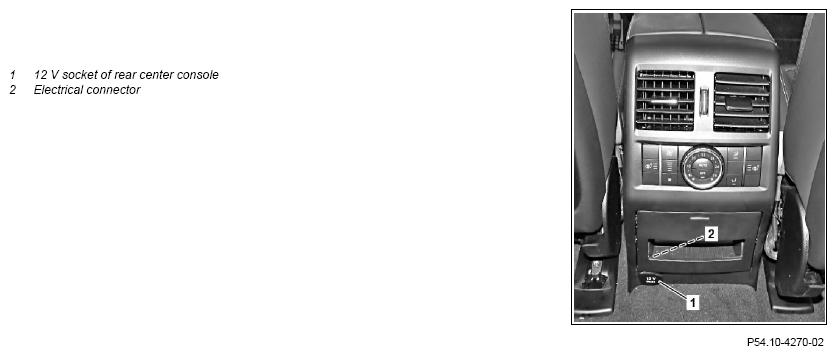

2	Open flap of 12 V socket of rear center console (1)
3	Release 12 V socket of rear center console (1) using pliers and pull out until electrical connection (2) is accessible	The studs of the pliers must engage in the cutouts of the 12 V socket of the rear center console (1). Do not turn the 12 V socket of the rear center console (1) when pulling out. Pliers	Figure
4	Disconnect electrical connection (2) of 12 V socket of rear center console (1)
5	Install in the reverse order

Fig 1: Identifying Pliers (169 589 00 37 00)

Courtesy of MERCEDES-BENZ USA
