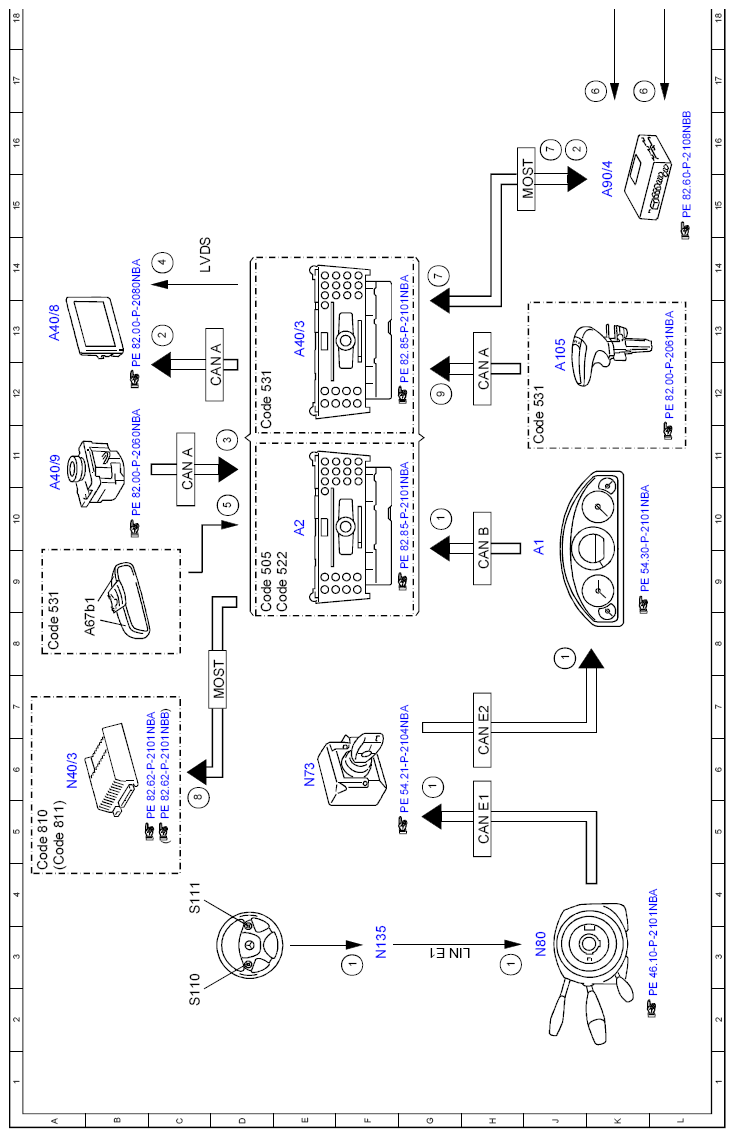

Electrical Function Diagram For Digital Audio Broadcasting, Function - PE82.60-P-2057-97NBA
MODEL 292 with CODE 537 (Digital radio (DAB))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 3F |
| 1 | Multifunction steering wheel button group, signal | 8J |
| 1 | Multifunction steering wheel button group, signal | 10G |
| 1 | Multifunction steering wheel button group, signal | 3H |
| 1 | Multifunction steering wheel button group, signal | 6G |
| 2 | Switch-on request, signal | 13C |
| 2 | Switch-on request, signal | 16J |
| 3 | Audio/COMAND controller, request | 11D |
| 4 | Audio/COMAND display, message | 14C |
| 5 | Voice input, signal | 10D |
| 6 | DAB band III, signal | 17K |
| 6 | DAB band III, signal | 21K |
| 6 | DAB band III, signal | 17K |
| 7 | DAB, communication | 16J |
| 7 | DAB, communication | 14G |
| 8 | Sound system amplifier, actuation | 6C |
| 9 | Operation, signal | 12G |
| A1 | Instrument cluster | 9J |
| A105 | Touchpad | 13J |
| A2 | Radio | 10E |
| A2/19 | FM 2 and DAB antenna amplifier | 19K |
| A2/32 | Rear window antenna | 22K |
| A40/3 | COMAND control unit | 13E |
| A40/8 | Audio/COMAND display | 13A |
| A40/9 | Audio/COMAND control panel | 11A |
| A67b1 | Hands-free system microphone group | 8B |
| A90/4 | Tuner unit | 15K |
| A94/6 | TV 2 antenna amplifier | 19K |
| CAN | A Telematics CAN | 11C |
| CAN | A Telematics CAN | 12D |
| CAN | A Telematics CAN | 12H |
| CAN | B Interior CAN | 9H |
| CAN | E1 Chassis CAN 1 | 5H |
| CAN | E2 Chassis CAN 2 | 6H |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 9D |
| Code 522 | Audio 20 radio | 9E |
| Code 531 | COMAND APS | 11D |
| Code 531 | COMAND APS | 8A |
| Code 531 | COMAND APS | 11J |
| Code 810 | Sound system | 4A |
| Code 811 | Extended sound system | 4A |
| LIN | E1 Steering LIN | 3G |
| LVDS | Low voltage differential signal | 14C |
| MOST | Media Oriented System Transport | 15J |
| MOST | Media Oriented System Transport | 7D |
| N135 | Steering wheel electronics | 3F |
| N40/3 | Sound system amplifier control unit | 6A |
| N73 | Electronic ignition switch control unit | 6E |
| N80 | Steering column module control unit | 3J |
| S110 | Left multifunction steering wheel button group | 2C |
| S111 | Right multifunction steering wheel button group | 4C |
