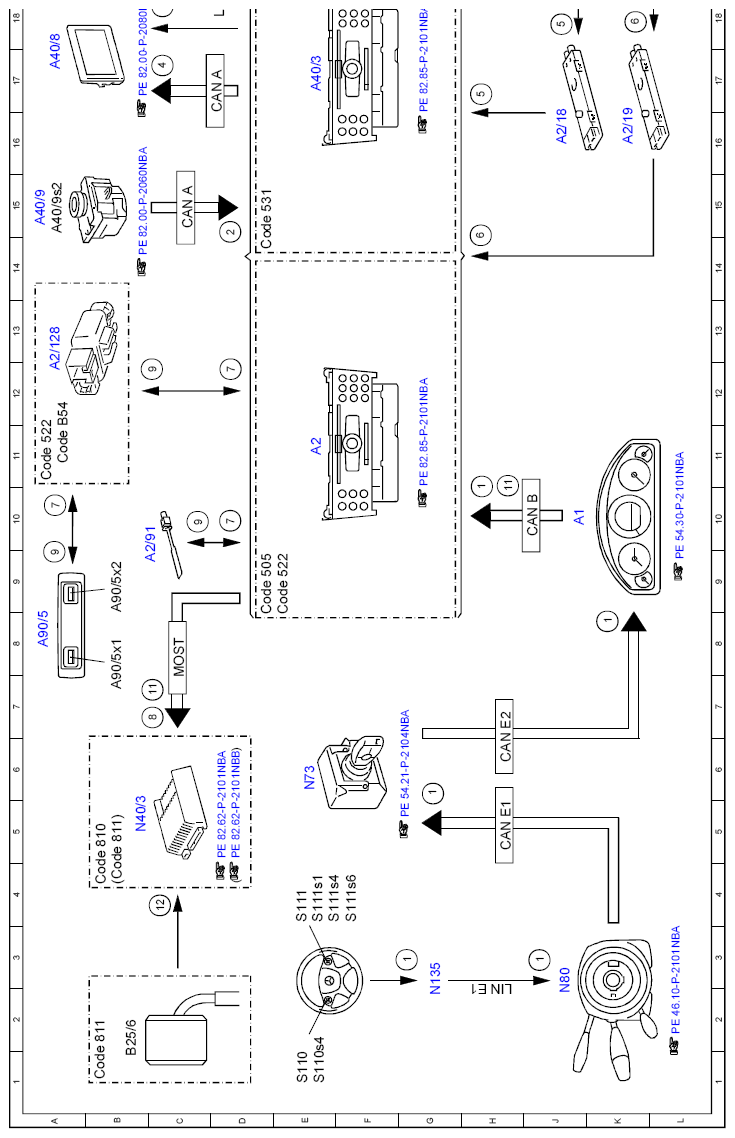

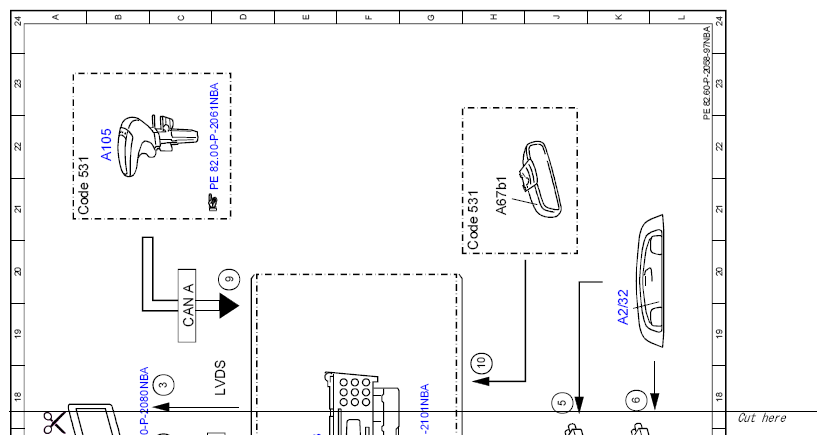

Electrical Function Diagram For Audio Mode, Function - PE82.60-P-2058-97NBA
MODEL 292
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Multifunction steering wheel button group, signal | 3G |
| 1 | Multifunction steering wheel button group, signal | 8K |
| 1 | Multifunction steering wheel button group, signal | 3J |
| 1 | Multifunction steering wheel button group, signal | 6G |
| 1 | Multifunction steering wheel button group, signal | 10H |
| 10 | Voice input, signal | 18H |
| 11 | Vehicle speed, signal | 7C |
| 11 | Vehicle speed, signal | 10H |
| 12 | Microphone, signal | 4C |
| 2 | Audio/COMAND controller, request | 15D |
| 3 | Audio/COMAND display, message | 18C |
| 4 | Switch-on request, signal | 17C |
| 5 | AM/FM antenna, signal | 17H |
| 5 | AM/FM antenna, signal | 18J |
| 6 | FM antenna, signal | 15H |
| 6 | FM antenna, signal | 18K |
| 7 | Audio, signal | 10D |
| 7 | Audio, signal | 12D |
| 7 | Audio, signal | 10A |
| 8 | Sound system amplifier, actuation | 7C |
| 9 | Operation, signal | 12C |
| 9 | Operation, signal | 20D |
| 9 | Operation, signal | 10C |
| 9 | Operation, signal | 9A |
| A1 | Instrument cluster | 10J |
| A105 | Touchpad | 22B |
| A2 | Radio | 11E |
| A2/128 | USB splitter | 13A |
| A2/18 | FM 1, AM, CL [ZV] and KEYLESS GO antenna amplifier | 16J |
| A2/19 | FM 2 and DAB antenna amplifier | 16K |
| A2/32 | Rear window antenna | 19K |
| A2/91 | Bluetooth® antenna | 9C |
| A40/3 | COMAND control unit | 17E |
| A40/8 | Audio/COMAND display | 17A |
| A40/9 | Audio/COMAND control panel | 15A |
| A40/9s2 | "Back" button | 15A |
| A67b1 | Hands-free system microphone group | 21H |
| A90/5 | Multimedia connection unit | 8A |
| A90/5x1 | USB connector 1 | 7B |
| A90/5x2 | USB connector 2 | 9B |
| B25/6 | Sound system microphone | 2B |
| CANA | Telematics CAN | 17D |
| CAN A | Telematics CAN | 15C |
| CAN A | Telematics CAN | 19C |
| CAN B | Interior CAN | 10J |
| CAN E1 | Chassis CAN 1 | 5H |
| CAN E2 | Chassis CAN 2 | 6H |
| Code 505 | Radio 20 NTG5, non-navigation-capable | 8D |
| Code 522 | Audio 20 radio | 8E |
| Code 522 | Audio 20 radio | 11A |
| Code 531 | COMAND APS | 14D |
| Code 531 | COMAND APS | 21B |
| Code 531 | COMAND APS | 20H |
| Code 810 | Sound system | 4B |
| Code 811 | Extended sound system | 4B |
| Code 811 | Extended sound system | 1B |
| Code B54 | Live Traffic Information | 11A |
| LIN E1 | Steering LIN | 2H |
| LVDS | Low voltage differential signal | 18D |
| MOST | Media Oriented System Transport | 8C |
| N135 | Steering wheel electronics | 2G |
| N40/3 | Sound system amplifier control unit | 5B |
| N73 | Electronic ignition switch control unit | 6E |
| N80 | Steering column module control unit | 2J |
| S110 | Left multifunction steering wheel button group | 1E |
| S110s4 | "Back" and voice control system OFF button | 1E |
| S111 | Right multifunction steering wheel button group | 4E |
| S111s1 | Buttons + and - for setting specific functions and volume control | 4E |
| S111s4 | Voice control system ON button | 4F |
| S111s6 | Mute function button | 4F |
