Retrofit Comand Online Incl. DVD Changer - AN82.85-P-0008GQB

MODEL 292.3 with CODE 3U1 (Headunit europe/CIS-states/Monoglei) with CODE 531 (COMAND APS) with CODE 815 (Single DVD drive)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove

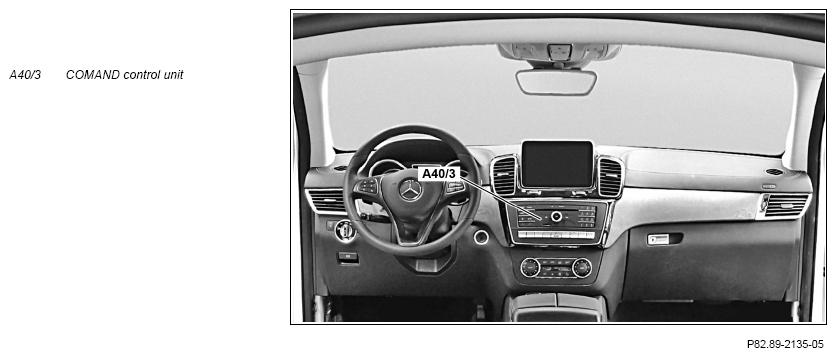

1	Remove COMAND controller unit (A40/3)
			AR82.60-P-7502GQ
		The COMAND controller unit (A40/3) COMAND Online incl. DVD player is no longer required.
2	Remove upper control panel control unit.
			AR54.21-P-1262GQC
	Install
3	Mount UCP control unit onto new COMAND controller unit (A40/3)
			AR54.21-P-1262GQC
4	Install new COMAND controller unit (A40/3)
			AR82.60-P-7502GQ
	Update Vehicle Documentation (VeDoc)
5	Delete special equipment from online vehicle data card	Code 815  (Single DVD drive)
6	Enter special equipment in online vehicle data card	Code 814  (DVD changer)
7	Attach note "COMAND Online with DVD changer retrofitted as per AN82.85-P-0008GQB " under field organization texts to design group 82
8	Connect diagnostic system and select vehicle via the vehicle identification number (VIN)
			AD00.00-P-2000-04A
9	Carry out variant coding using software calibration number (SCN)	COMAND controller unit (A40/3)
10	Disconnect diagnostic system
			AD00.00-P-2000-04A
	Check
11	Perform function test	See Owner's Manual.
