Install Illuminated Door Sill - AN82.20-P-0001-04GQC
MODEL 292.3 (except 292.374/375) except CODE 876 (ambient lighting)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1025-04A | Cleaner | A 005 989 19 71 |
| BR00.45-Z-1098-02A | Self-adhesive felt strips 25 2 mm | A 001 983 51 10 |
The work procedure is shown on the right side of a left-hand drive vehicle and must be performed in the same fashion on the left side of the vehicle.

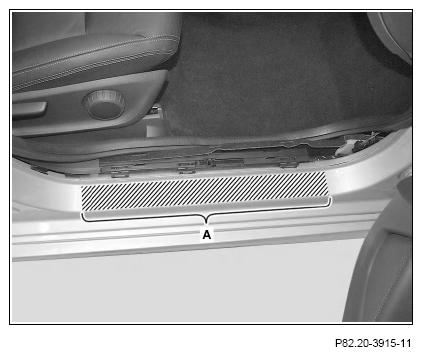

- Clean contact surface in area (A) with cleaner.
The area to be glued must be free of dust and grease.

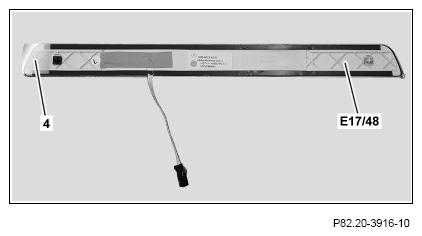

- Starting at the removing aid (4), pull off protective foils of adhesive strips.
Do not touch adhesive strips with fingers. Otherwise adhesion problems may occur.

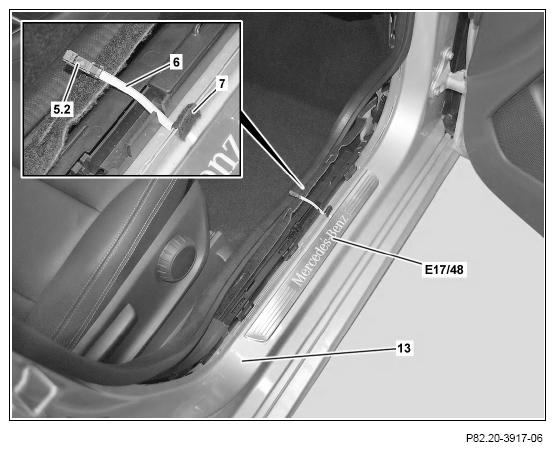

- Align right front illuminated door sill molding (E17/48) to longitudinal member (13) and secure.
- Route electrical line (6) over longitudinal member and, as shown, fix in place using felt strips (7).
The 2-pin plug (5.2) will be connected at a later stage.
