Inspect Wiper Blade - AP82.30-P-8253G
MODEL 117, 124, 129, 140, 156, 163, 164, 166, 168, 169, 170, 171, 172, 176, 177, 190, 197.3/4, 202, 203, 204, 205, 207, 208, 209, 210, 211, 212, 213, 215, 216, 217, 218, 219, 220, 221, 222, 230, 231, 238, 242, 245, 246, 251, 253, 257, 292, 414, 453, 460, 461, 463

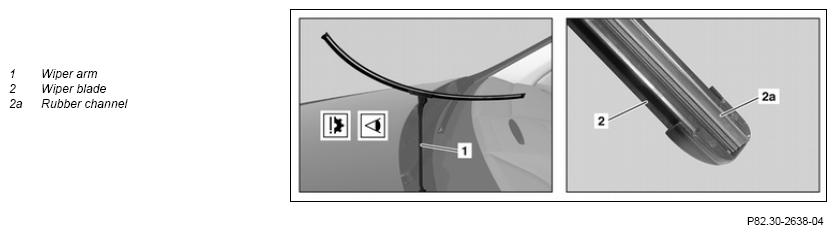

Version A

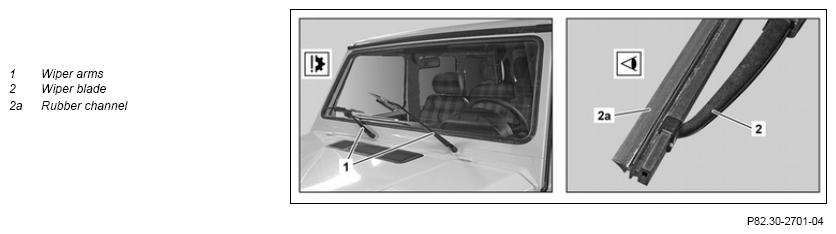

Version B
Maintenance indicator on wiper blade
| Risk of injury . Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Preparatory activity | |||
| 1 | Close hood and, if necessary, liftgate or rear-end door | ||
| 2 | Switch electronic ignition lock control unit to position "2" (circuit 15) | Vehicle in which the wiper arms (1) cannot be folded down sufficiently far enough from the windshield. | |
| 3 | Switch on windshield wipers of windshield | Vehicle in which the wiper arms (1) cannot be folded down sufficiently far enough from the windshield. | |
| 4 | Switch electronic ignition lock control unit to position "0" | Vehicle in which the wiper arms (1) cannot be folded down sufficiently far enough from the windshield. Do not switch on electronic ignition system control unit as long as the wiper arms (1) of windshield or rear window are folded out. Damage can otherwise occur. Remove KEYLESS-GO chip card or transmitter key from vehicle and keep outside transmitter range (at least 2 m (78.74 inch)). |
|
| 5 | Fold out wiper arms (1) of windshield or rear window | Secure wiper arms (1) against folding back in an uncontrolled manner onto windscreen or rear window and fold back wiper arms (1) only with wiper blades (2) installed on windscreen or rear window. Damage can otherwise occur. |
|
| Check | |||
| 6 | Check maintenance indicator of wiper blades (2) | Wiper blades (2) with maintenance indicator. If the protective foil is still on the maintenance indicator. ↓ Remove protective foil. If the maintenance indicator is yellow. ↓ Install new wiper blades (2), subject to a separate repair order. |
|
| 7 | Check wiper blades (2) for correct mounting and damage | If a problem arises ↓ Install new wiper blades (2), subject to a separate repair order. |
|
| 8.1 | Check rubber profile (2a) of version A for hardening, cracks, wear and correct seating in the guides and end caps | Vehicle with version A. If a problem arises ↓ Install new wiper blades (2), subject to a separate repair order. |
|
| 8.2 | Check rubber profile (2a) of version B for hardening, cracks, wear and correct seating in the guides and end caps | Vehicle with version B. If a problem arises ↓ Subject to separate repair order, replace rubber profile (2a) or complete wiper blades (2). |
|
| Finishing activity | |||
| 9 | Put the vehicle back in its initial state |
