Check Function Of Headlamp Range Adjustment - AP82.10-P-8250EW

MODEL 117, 156, 164, 166, 169, 171, 172, 176, 177, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245, 246, 251, 253, 257, 292, 453, 461, 463

	Preparatory activity
1	Park the vehicle on a horizontal, level surface	The light beam characteristics can be checked on an opposite wall that is as parallel as possible to the front bumper.

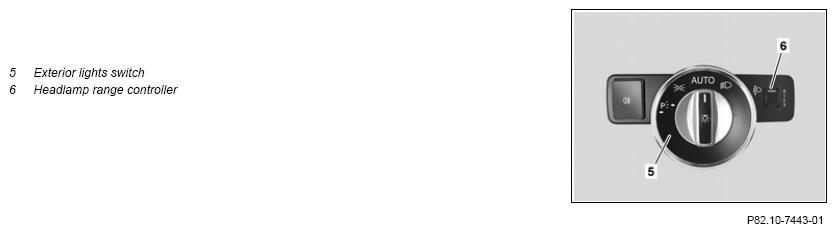

2	Switch on low beam on exterior lighting switch (5)
	Check
3.1	Start engine and check light beam movement	Vehicle without headlamp range adjuster (6). With active headlamps, the light beams of both headlamps must move first to the adjustment limits and then to the drive position. With passive headlamps in combination with active suspension, the light beams only move during level adjustment of the active suspension. With passive headlamps in combination with passive suspension, the light beams do not move at all. For problems involving active headlamps ↓ Rectify problem subject to separate repair order.
3.2	Start engine and check headlamp range adjustment for proper operation by adjusting headlamp range controller (6)	Vehicle with headlamp range adjuster (6). The light beams of both headlamps must adjust uniformly corresponding to the adjustment of the headlamp range controller (6). If a problem arises ↓ Rectify problem subject to separate repair order.
	Finishing activity
4	Reset switch positions of vehicle to input condition	Move headlamp range controller (6) to appropriate position for vehicle load status.
