Remove/Install Taillamp - AR82.10-P-4905GQC
MODEL 292
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove side paneling in trunk | AR68.30-P-4800GQC | |

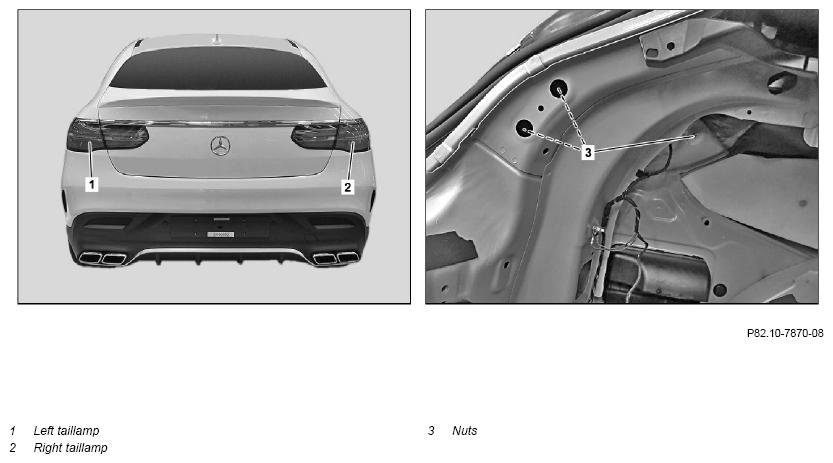

| 2 | Unscrew nuts (3) | ||
| 3 | Remove left taillamp (1) or right taillamp (2) | ||
| 4 | Disconnect electrical connector at left taillamp (1) or at right taillamp (2) | ||
| 5 | Install in the reverse order |
