Remove/Install Front Overhead Control Panel - AR82.20-P-1100GQC
MODEL 292
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Connect diagnostic system and save basic data of overhead control panel (1) control unit | Only when replacing the overhead control panel (1) control unit. | |
| AD00.00-P-2000-04A | |||
| 2 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Unclip overhead control panel (1) at rear from headliner and carefully swivel forwards until the electrical connectors (2) are accessible | ||

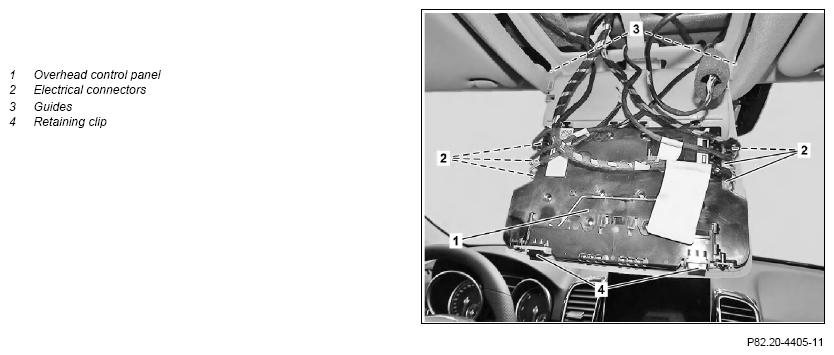

| Figure | |||
| 4 | Disconnect electrical connectors (2) from overhead control panel (1) | ||
| 5 | Pull overhead control panel (1) out of supports on guides (3) and remove | ||
| 6 | Install in the reverse order | ||
| Initial startup | |||
| 7 | Transfer previously stored basic data onto overhead control panel (1) control unit | Only when replacing the overhead control panel (1) control unit. | |
| AD00.00-P-2000-04A | |||
| 8 | Perform initial startup of overhead control panel (1) control unit | Only when replacing the overhead control panel (1) control unit. |
