Remove/Install Display In Rear - AR82.60-P-7720GQC

MODEL 292

with CODE 864 (Rear compartment entertainment package)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Connect diagnostic system and save basic data from left rear display (A40/5) or from right rear display (A40/6)	Only when replacing the left rear display (A40/5) or the right rear display (A40/6).
			AD00.00-P-2000-04A
2	Switch off ignition and remove transmitter key

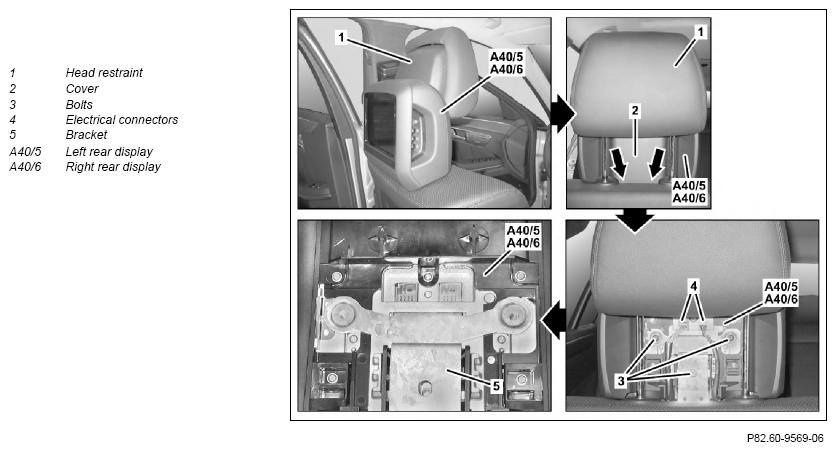

3	Move head restraint (1) on front seat up
4	Unclip cover (2) (arrows)	Carefully unclip cover (2). Otherwise, the cover (2) can be damaged.
		Extraction hook	Figure
5	Remove bolts (3)
6	Disconnect electrical connections (4)

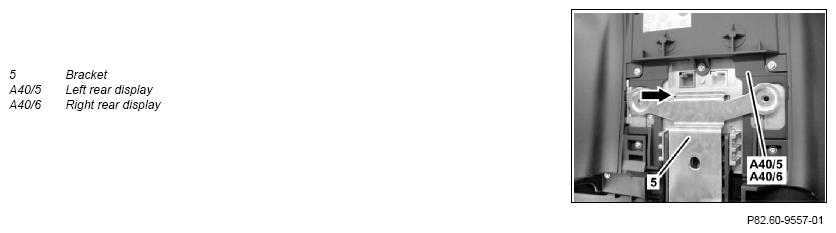

7	Remove left rear display (A40/5) or right rear display (A40/6)	Note the assembly position of the left rear display (A40/5) or the right rear display (A40/6) on the bracket (5). The bracket (5) is hooked into the left rear display (A40/5) or the right rear display (A40/6) (arrow).
8	Install in the reverse order
	Initial startup
9	Carry out SCN coding of left rear display (A40/5) or of right rear display (A40/6)	Only after replacing the left rear display (A40/5) or right rear display (A40/6).
			AR54.21-P-0015X
10	Transfer previously saved basic data to the left rear display (A40/5) or the right rear display (A40/6)	Only after replacing the left rear display (A40/5) or right rear display (A40/6).
			AD00.00-P-2000-04A
