Remove/Install Antenna Changeover Switch - AR82.62-P-0010GQC
MODEL 292 as of model year 2016
with CODE 386 (Comfort telephony)
with CODE B24 (remote control for auxiliary heater)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove paneling in left side of trunk | AR68.30-P-4800GQC | |
| 3 | Release and disconnect electrical connectors at telephone and stationary heater antenna changeover switch (A2/155) | ||

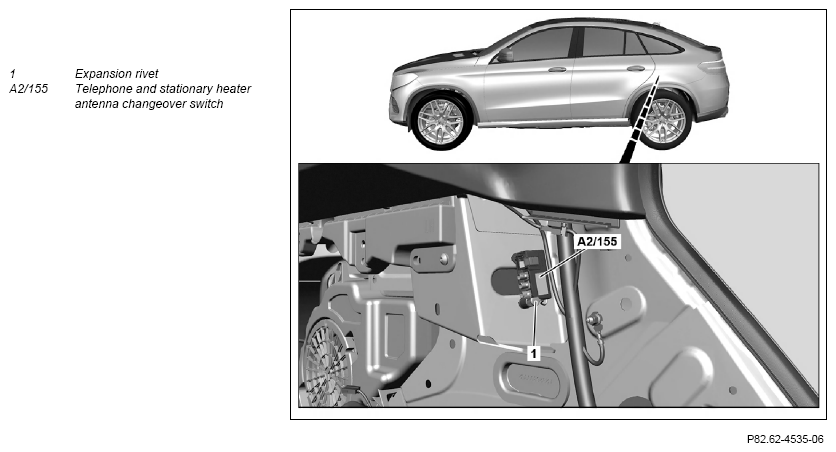

| 4 | Open expansion rivet (1) at telephone and stationary heater antenna changeover switch (A2/155) using suitable tool | ||
| 5 | Unclip and remove telephone and stationary heater antenna changeover switch (A2/155) | Figure | |
| 6 | Install in the reverse order |
