Prepare Outer Rear Wheel Well For Installation - AR63.10-P-0670-05GQC

MODEL 292

The following steps are shown on the left side of the vehicle and must be performed analogously on the right side in the event of damage.

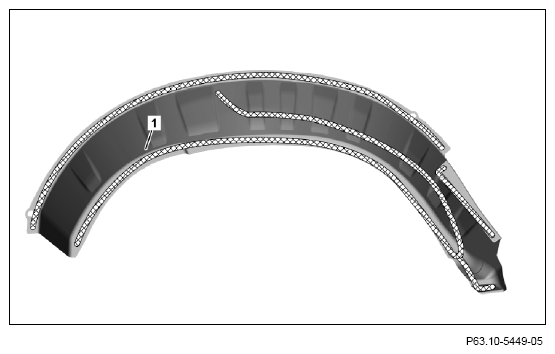

1. Grind mating surfaces on outer rear wheel well (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

2. Coat insides of spot welding flanges with zinc dust paint.
