Separate Rear Center Section With Crossmember - AR64.20-P-1060-01GQC

MODEL 292

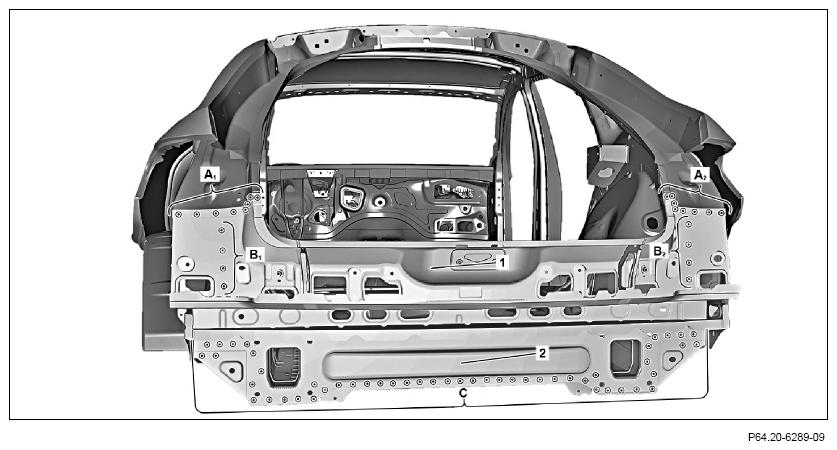

1. Expose spot welds on rear center section inner section (1) and bottom rear center section on crossmember (2) and cut out (areas A1, A2, B1, B2 and C).

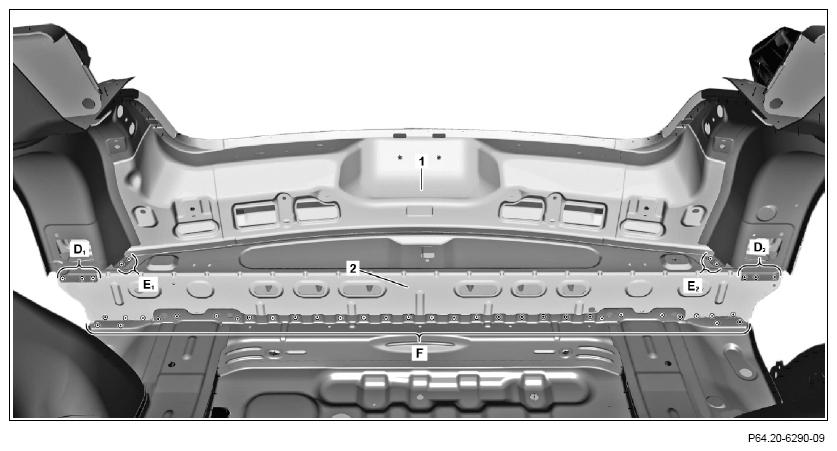

2. Expose spot welds on rear center section inner section (1) and bottom rear center section on crossmember (2) and cut out (areas D₁ , D₂ , E₁ , E₂ and F).
3. Remove damaged rear center section inner section (1) and bottom rear center section with crossmember (2).

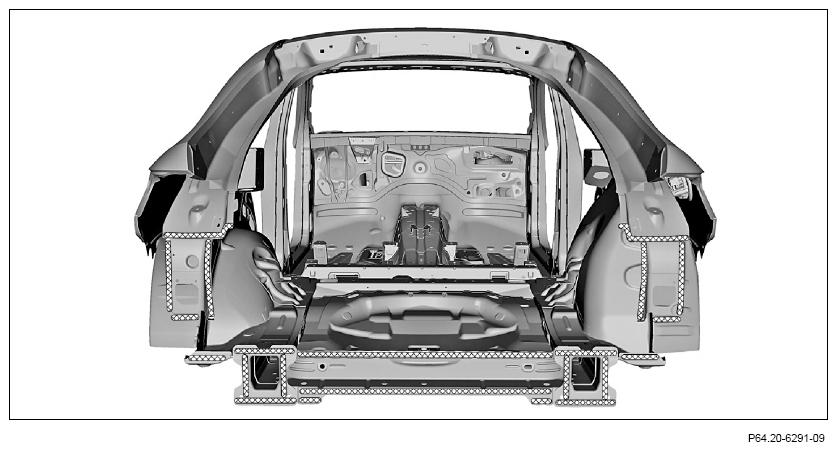

4. Sand down mating surfaces to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

5. Remove shavings using wet/dry vacuum cleaner.
6. Coat insides of spot welding flanges with zinc dust paint.
