Separate Outer Rear Center Section - AR64.20-P-1000-01GQC

MODEL 292

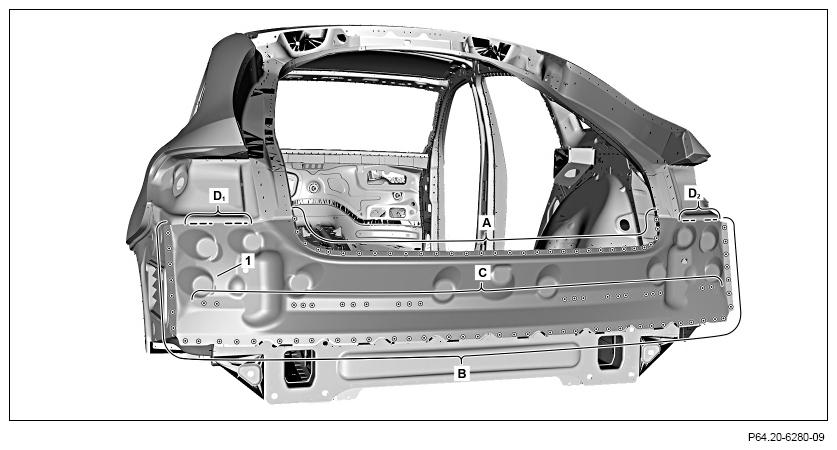

1. Expose spot welds on rear center section outer section (1) and cut out (area A, B and C).
2. Expose MIG solder seams on rear center section outer section (1) and cut (area D₁ and D₂ ).
3. Remove damaged rear center section outer section (1).

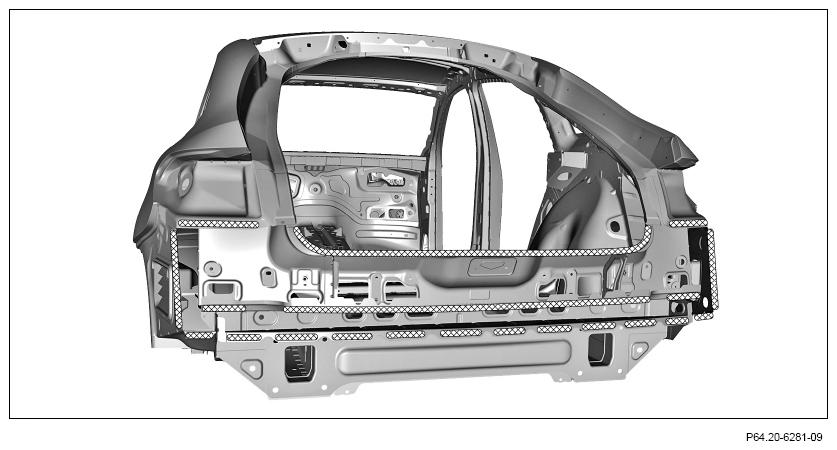

4. Sand down mating surfaces to bare metal in cross-hatched areas.

   Sand down spot weld flanges to bare metal on both sides.

5. Remove shavings using wet/dry vacuum cleaner.
6. Coat insides of spot welding flanges with zinc dust paint.
