Prepare Rear Center Section With Crossmember - AR64.20-P-1060-05GQC

MODEL 292

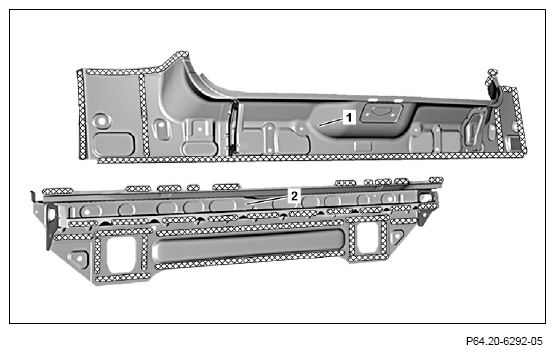

1. Grind mating surfaces on lower rear center section with crossmember (2) and rear center section inner section (1) down to bare metal in crosshatched areas.

   Sand down spot weld flanges to bare metal on both sides.

2. Coat insides of spot welding flanges with zinc dust paint.
