Prepare Outer Rear Center Section - AR64.20-P-1000-09GQC

MODEL 292

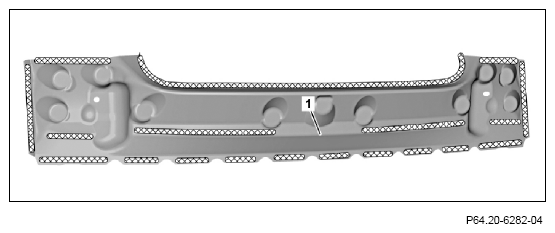

  1. Grind mating surfaces on rear center section outer section (1) down to bare metal in crosshatched areas.

    IMPORTANT Sand down spot weld flanges to bare metal on both sides.

  2. Coat insides of spot welding flanges with zinc dust paint.
G11975400
