Install Rear Center Section With Crossmember And Weld In - AR64.20-P-1060-06GQC

MODEL 292

1. Install bottom rear center section with crossmember (2) and rear center section inner section (1) and fit.
2. Install lamp carrier with D-pillar connector and bottom rear fender, seal, lock striker, trunk lid and taillamps and fit.
3. Fix bottom rear center section with crossmember (2) and rear center section inner section (1) in place.

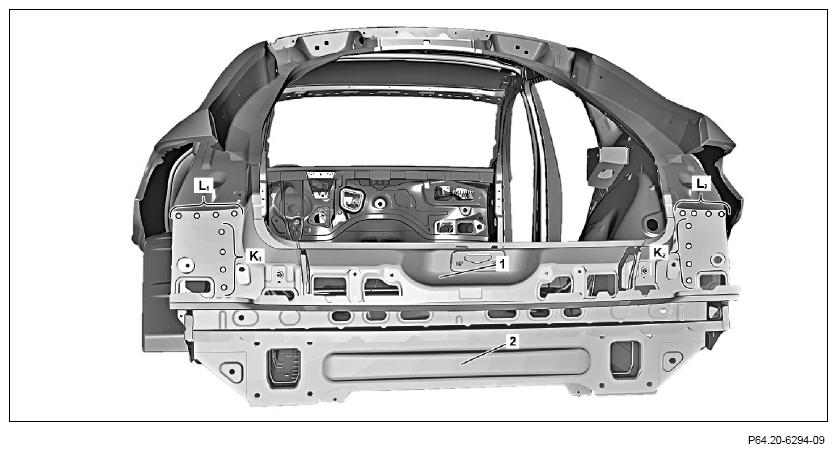

4. Drill rivet holes on bottom rear center section with crossmember (2) with Ø 6.7 mm bit (areas H, I₁ , I₂ , J₁ and J₂ ).
5. Drill rivet holes on rear center section inner section (1) Ø 6.7 mm (areas K₁ and K₂ ).
6. Remove bottom rear center section with crossmember (2) and rear center section inner section (1).
7. Deburr rivet holes and drill holes on bottom rear center section with crossmember (2) and rear center section inner section (1) on both sides.
8. Remove drilling shavings with wet/dry vacuum cleaner.
9. Coat insides of riveted joints with zinc dust paint.
10. Punch weld holes on rear center section inner section (1) (areas L₁ and L₂ ).
11. Install bottom rear center section with crossmember (2) and rear center section inner section (1), fit and fix in place.

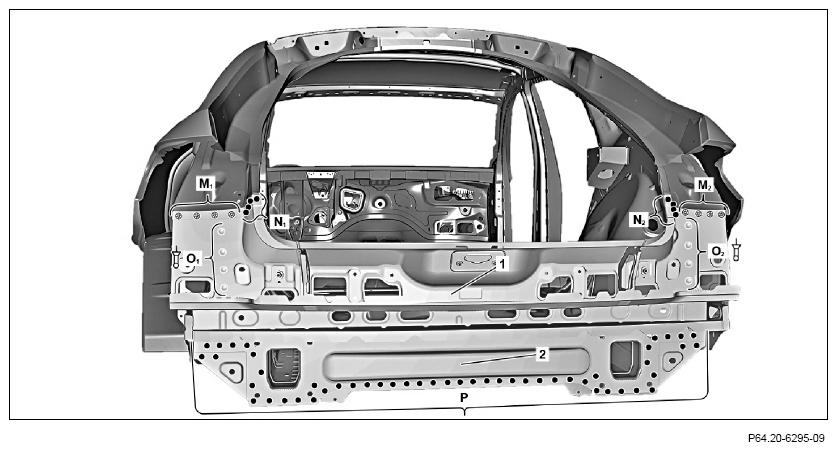

12. Rivet rear center section inner section (1) with Ø 6, 5 X 12, 5 blind rivet (areas O₁ and O₂ ).
13. Rear center section inner section (1) (areas N₁ and N₂ ).
14. Bottom rear center section with crossmember (2) (area P).
15. Rear center section outer section (1) (area M1 and M₂ ).
16. Clean weld joints.
17. Remove shavings using wet/dry vacuum cleaner.

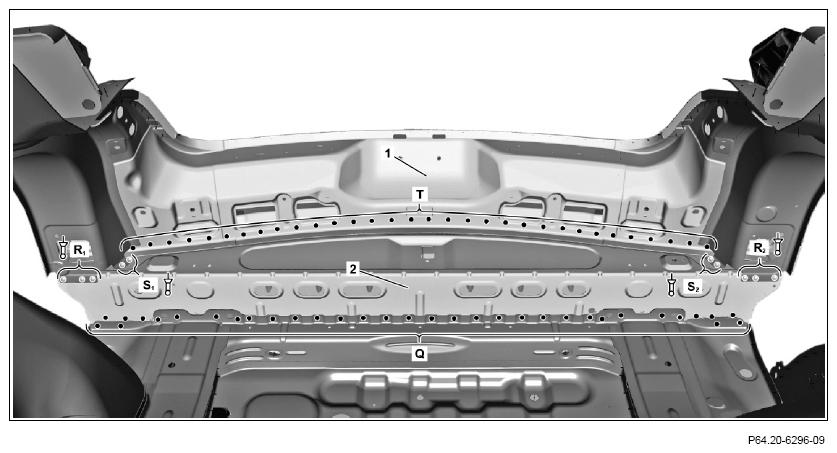

18. Bottom rear center section with crossmember (2) (area Q).
19. Rivet bottom rear center section with crossmember (2) with Ø 6.5 X 12.5 (areas R₁ , R₂ , S₁ and S₂ ).
20. Rear center section inner section (1) (area T).
21. Clean weld joints.
22. Remove shavings using wet/dry vacuum cleaner.
