Install And Weld In Outer Part Of Rear Center Section - AR64.20-P-1000-10GQC

MODEL 292

1. Install rear center section outer section (1) and fit.
2. Install seal, lock striker, trunk lid and taillamps and fit.
3. Fix rear center section outer section (1) in place.

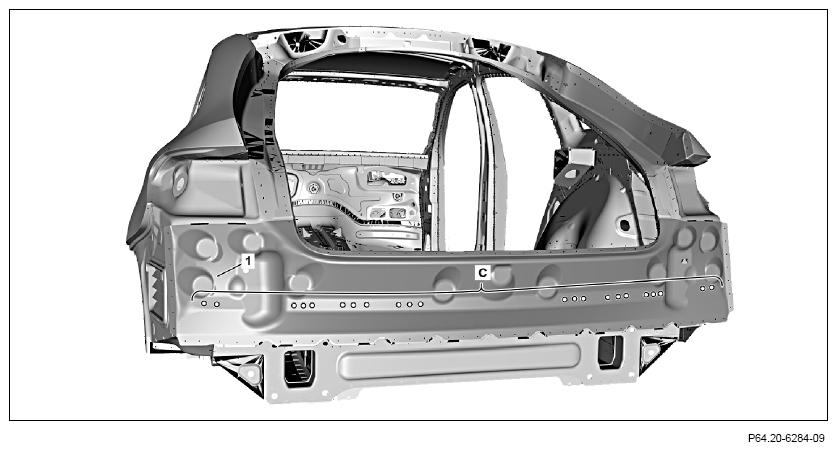

4. Drill rivet holes on rear center section outer section (1) with Ø 6, 7 mm (areas C).
5. Remove rear outer center section (1).
6. Deburr rivet hoes on rear center section outer section (1) on both sides (areas C).
7. Remove drilling shavings with wet/dry vacuum cleaner.
8. Coat insides of riveted joints with zinc dust paint.
9. Install rear center section outer section (1), fit and fix in place.
10. Rivet rear center section outer section (1) with Ø 6.5 X 12.5 blind rivets (area C).

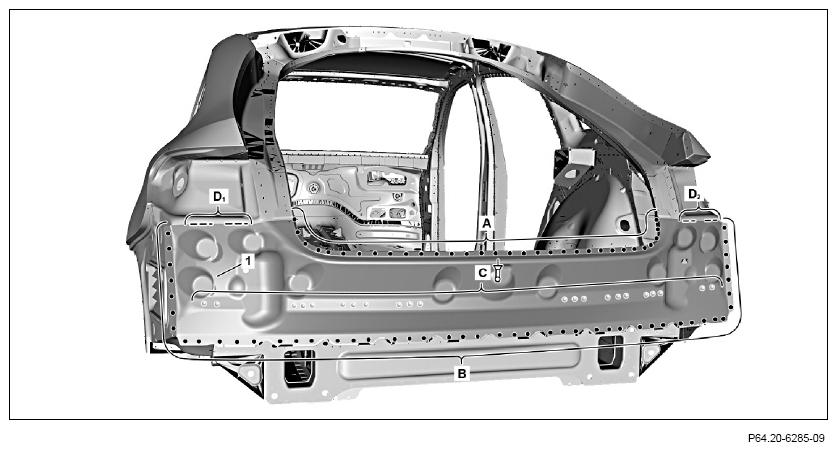

11. Rear center section outer section (1) (areas A and B).
12. Rear center section outer section (1) (areas D₁ and D₂ ).
13. Clean MIG solder connections.
14. Clean weld joints.
15. Remove shavings using wet/dry vacuum cleaner.
