Assess Condition Of Brake Disks - AP42.10-P-4256EW
MODEL 117, 156, 164, 166, 169, 171, 172, 176, 190, 197, 203, 204, 205, 207, 209, 211, 212, 213, 216, 217, 218, 219, 221, 222, 230, 231, 238, 242, 245, 246, 251, 253, 292, 453, 463
Shown with complete wheels removed
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Notes on handling, transport and storage of ceramic brake disks | with code B07 (ceramic brake system) | AH42.10-P-9406-13A | |
| Notes on handling, transport and storage of composite brake disks | Model 190, 205, 213, 217, 222, 238, 253 | AH42.10-P-9406-12LF | |
| Check | |||
| 1.1 | Check all steel brake disks (1) for score marks, cracks, corrosion, ridging on outer edge and for soiling (oil, grease) | Except code B07 (Ceramic brake system), Model 205 with code B07 (Ceramic brake system) on rear axle only For a crack length (x) ≥ 25 mm (0.98 inches), gaping cracks or score marks deeper than 0.5 mm (0.02 inches) or pitted corrosion or deeply contoured ridging at the outer edge ↓ Replace steel brake disks (1) subject to separate repair order. |
|
In event of soiling (oil, grease) ↓ Clean steel brake disks (1), subject to separate repair order, replace if necessary. If, in exceptional cases, assessment of the steel brake disks (1) by means of visual inspection is not possible. ↓ Check condition of steel brake disks (1) subject to separate repair order. |

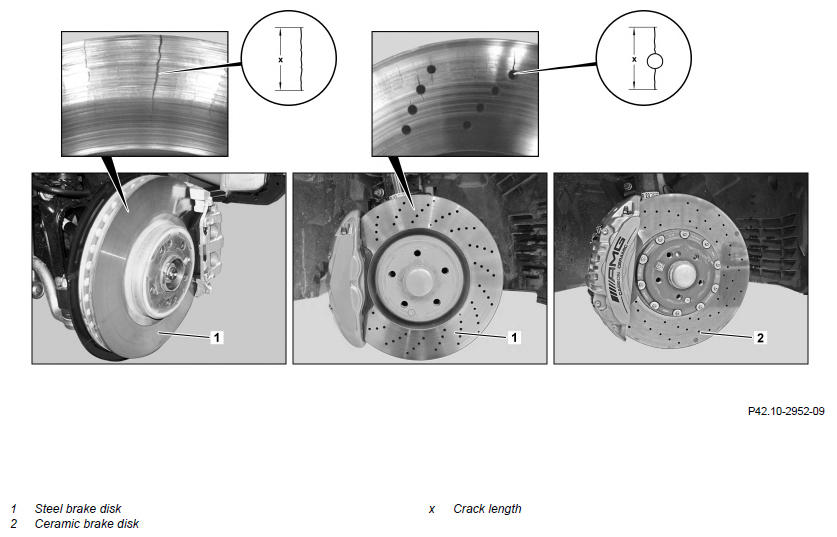

Fig 1 | ||
| Model 117 | AP42.10-P-4258NK | ||
| Model 156 | AP42.10-P-4258NL | ||
| Model 164, 251 | AP42.10-P-4258GZ | ||
| Model 166 | AP42.10-P-4258GQ | ||
| Model 169, 245 (except 245.286) | AP42.10-P-4258AK | ||
| Model 171, 172 | AP42.10-P-4258V | ||
| Model 176 | AP42.10-P-4258NM | ||
| Model 190 | AP42.10-P-4258A | ||
| Model 197.3/4 | AP42.10-P-4258RQ | ||
| Model 203 | AP42.10-P-4258BP | ||
| Model 204 | AP42.10-P-4258CW | ||
| Model 205, 207, 212, 218 | AP42.10-P-4258EW | ||
| Model 209 | AP42.10-P-4258BQ | ||
| Model 211, 230 | AP42.10-P-4258R | ||
| Model 213, 253 | AR42.10-P-0120LWG | ||
| Model 216, 221.0/1 | AP42.10-P-4258SX | ||
| Model 217 | AP42.10-P-4258C | ||
| Model 219 | AP42.10-P-4258TX | ||
| Model 222 | AP42.10-P-4258HA | ||
| Model 231 | AP42.10-P-4258RK | ||
| Model 238 | AR42.10-P-0120LWO | ||
| Model 242 | AP42.10-P-4258NP | ||
| Model 246 | AP42.10-P-4258NR | ||
| Model 292 | AR42.10-P-0120A | ||
| Model 453 | AP42.10-P-4258S | ||
| Model 463.202/236/237/346 as of model year 2012 Model 463.272/273/274 |
AP42.10-P-4258G | ||
| 1.2 | Check all ceramic brake disks (2) for damage and soiling (oil, grease) | With code B07 (Ceramic brake system), model 205 with code B07 (Ceramic brake system) on front axle only | |
| Notes on evaluating brake disks | AH42.10-P-9406-07RQ | ||
Replace damaged or soiled ceramic brake disks (2), subject to separate repair order. Otherwise the brake system may fail. If, in exceptional cases, assessment of the ceramic brake disks (2) by means of visual inspection is not possible. ↓ Check condition of ceramic brake disks (2) subject to separate repair order. |
|||
| Model 190, model 205 front axle | AP42.10-P-4258AC | ||
| Model 197, 212, 218, 231 | AP42.10-P-4258QQ | ||
| Model 213 | AR42.10-P-0120LWG | ||
| Model 217 | AP42.10-P-4258CC | ||
| Model 222 | AP42.10-P-4258HC |
