Remove/Install Left Front Or Right Rpm Sensor - AR42.30-P-0712GZ
MODEL 164, 166, 292
Illustration shows model 164
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and keep transmitter key at a location beyond transmitter range (at least 2 m) | ||
| 2 | Lift vehicle on vehicle lift | AR00.60-P-1000GZ | |
| 3.1 | Remove front section of fender liner in fender | Model 164 | AR88.10-P-1310GZ |
| 3.2 | Detach fender liner front section in fender in area of electrical connectors (3) | Model 166, 292 | AR88.10-P-1310GQ |
| 4 | Release and disconnect electrical connections (3) | ||
| 5 | Remove electrical line (2) from all brackets (arrows A) | ||

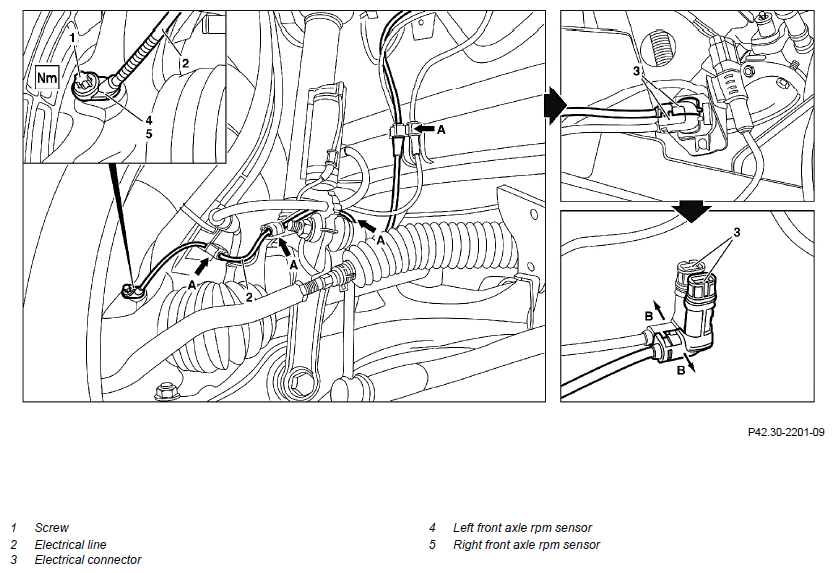

| 6 | Remove screw/bolt (1) | *BA42.30-P-1001-01G | |
| 7 | Remove left front axle rpm sensor (4) or right front axle rpm sensor (5) from steering knuckle | ||
| 8 | Install in the reverse order |
FRONT AXLE RPM SENSOR
| Number | Designation | Model 164.1/8 | Model 166 | |
|---|---|---|---|---|
| BA42.30-P-1001-01G | Self-locking bolt, rpm sensor on front axle to steering knuckle | Nm | 8 | 8 |
FRONT AXLE RPM SENSOR
| Number | Designation | Model 292 | |
|---|---|---|---|
| BA42.30-P-1001-01G | Self-locking bolt, rpm sensor on front axle to steering knuckle | Nm | 10 |
