Electronic Stability Program Control Unit, Basic Function - GF42.45-P-9890A
MODEL ALL (CAR)
Shown on model 177.0
Overview
This document contains information on:
- Location
- Task
Location

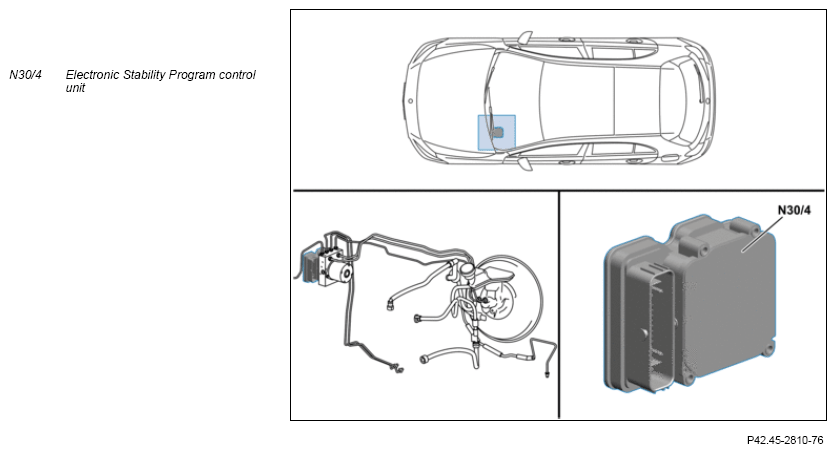

The Electronic Stability Program control unit is located at the left in the engine compartment, next to the BAS brake booster on the traction system hydraulic unit.
Task
The powertrain control unit primarily intervenes in the following functions:
- Brake and traction system (ADAPTIVE BRAKE)
- Electric parking brake
- Electronic Stability Program (ESP®)
- Electronic brake force distribution (EBD)
- Anti-lock braking system (ABS)
- Traction control
- Brake Assist System (BAS)
- Hill Start Assist
- Flash Adaptive Brake Lights
- Dry braking
- Precharge brake system
- HOLD function
- Stabilize trailer
- PRE-SAFE® system
- Standstill control (SSC)
- Tire pressure loss warning (RDW)
In order to carry out these functions, the Electronic Stability Program control unit primarily processes the following input factors:
- Ignition ON (circuit 15)
- Circuit 30t
- Circuit 31
- Stop lamp switch
- Left front axle rpm sensor
- Right front axle rpm sensor
- Left rear axle rpm sensor
- Right rear axle rpm sensor
- Accelerator pedal sensor
- Brake vacuum sensor
- Exterior lights and electric parking brake switch group
- With manual transmission: Main shifter shaft position sensor
The Electronic Stability Program control unit processes these input factors and primarily transmits the following actuations:
- Supplemental restraint system (SRS) control unit
- Electrical ignition lock control unit
- Drivetrain control unit
- Brake pedal signal
- Left electric parking brake actuator motor
- Right electric parking brake actuator motor
