Component Description For Rear Door Control Unit - GF72.29-P-6021GN

MODEL 166 as of model year 2016

MODEL 292

Shows model 166.0

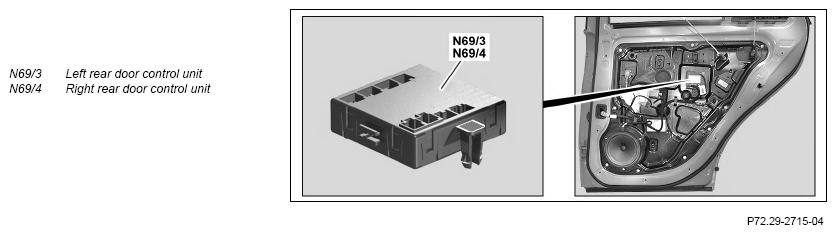

Fig 1: Rear Door Control Unit Component Location - Model 292, 166

Location

The rear door control units are located on the corresponding door module behind the door trim.

Task

The rear door control units have the following tasks:

Reading in of signals

The input factors are read in via the following connections:

Direct line

The signals from the following components are read in by the left rear door control unit via direct lines:

Left rear door lock (A85/3):
- Left rear door power closing microswitch actuator motor (A85/3s1) (with CODE 883 (Power closing))
- Left rear door main catch microswitch (A85/3s2)
- Left rear door inside door handle microswitch (A85/3s3) (with CODE 883 (Power closing))
- Left rear door external operation microswitch (A85/3s4) (with CODE 883 (Power closing))
Hall sensor in left rear door power window motor (M10/5)
Left rear door power closing microswitch (M14/23s1) (with CODE 883 (Power closing))
Left rear power window switch (S213)
The signals from the following components are read in by the right rear door control unit via direct lines:
Right rear door lock (A85/4):
Right rear door precatch microswitch (A85/4s1) (with CODE 883 (Power closing))
Right rear door main catch microswitch (A85/4s2)
Right rear inside door handle microswitch (A85/4s3) (with CODE 883 (Power closing))
Right rear door external operation microswitch (A85/4s4) (with CODE 883 (Power closing))
Hall sensor in right rear door power window motor (M10/6)
Right rear door power closing actuator motor microswitch (M14/24s1) (with CODE 883 (Power closing))
Right rear power window switch (S214)

The rear door control units connect the connected control elements with circuit 58d.

Interior CAN

The rear door control units read in the following signals, among others, via the interior CAN:

The functions that use these signals are described in the individual function descriptions (see appropriate block diagram or function schematic).

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components

The following components are actuated by the left rear door control unit via direct lines:

Left rear door lock:
- Left rear door central locking motor (A85/3m1)
- Left rear door additional door lock actuator motor (A85/3m4) (with code (885) Increased theft protection)
Left rear door exit and warning lamp (E17/5) (model 166.0, 292 with CODE 876 (Interior light package), model 166.8)
Left rear door handle illumination (E1713)
Left rear door ambiance illumination (E17/45) (with CODE 876 (Interior light package))
Left rear door power window motor
Left rear door power closing actuator motor (M14/23s1) (with CODE 883 (Power closing))

The following components are actuated by the right rear door control unit via direct lines:

Right rear door lock:
- Right rear door central locking motor (A85/4m1)
- Left rear door additional door lock actuator motor (A85/4m4) (with code (885) Increased theft protection)
Right rear door exit and warning lamp (E17/6) (model 166.0, 292 with CODE 876 (Interior lights package), model 166.8)
Right rear door handle illumination (E17/14)
Right rear door ambiance illumination (E17/46) (with CODE 876 (Interior lights package))
Right rear door power window motor
Right rear door power closing actuator motor actuator motor (M14/24s1) (with CODE 883 (Power closing))

Transmitting signals

The rear door control units send the following signals, among others, via the interior CAN:

The functions that use these signals are described in the individual function descriptions (see appropriate block diagram or function schematic).

	Wiring diagram for left rear door control unit (DCU [TSG])		PE72.29-P-2103-97NBA
	Wiring diagram for right rear door control unit (DCU [TSG])		PE72.29-P-2104-97NBA
