Component Description For Left Front Door Control Unit - GF72.29-P-6001GN

MODEL 166 as of model year 2016

MODEL 292

Shows model 166.0

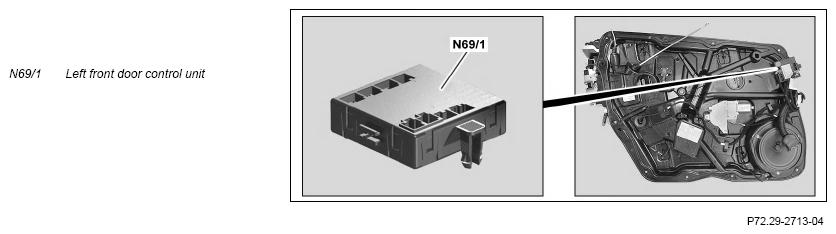

Location

The left front door control unit is located on the door module behind the door lining.

Task

The left front door control unit has the following tasks:

• Reading in of sensors and signals
• Evaluation of input factors
• Actuation of components
• Transmitting signals

Reading in of sensors and signals

The input factors are read in via the following connections:

• Direct line
• Left front door LIN (LIN B5)
• Interior CAN (CAN B)

Direct line

The signals from the following components are read via direct lines:

• Driver door infrared remote control receiver (A26/1) (left-hand drive vehicle)
• Door lock for left front door (A85):
  • Left front door external operation microswitch (A85s1) (with CODE 883 (Power closing))
  • Left front door main catch microswitch (A85s2)
  • Left front door inside door handle microswitch (A85s3) (with CODE 883 (Power closing))
  • Left front door external operation microswitch (A85s4) (with CODE 883 (Power closing))
• Hall sensor in left front door power window motor (M10/3)
• Left front door power closing microswitch actuator motor (M14/21s1) (with CODE 883 (Power closing))
• Left outside mirror (M21/1):
  • Vertical inclination adjustment potentiometer (M21/1r2) (with CODE 275 (Memory package))
  • Horizontal inclination adjustment potentiometer (M21/1r3) (with CODE 275 (Memory package))
• Driver trunk lid/lift control button (S15/3) (with CODE 890 (EASY-PACK liftgate))
• Vent window switch (S21/5) (model 166.8 with CODE 413 (Panoramic sliding roof))
• Left front door central locking interior switch (S85/5):

• Open central locking switch (S85/5s1)
• Close central locking switch (S85/5s2)

Left front door LIN

The signals for the following components are read in via the left front door LIN:

• Driver-side power window and outside mirror adjustment switch group (S20):
  • Left front power window switch (S20s1)
  • Right front power window switch (S20s2)
  • Left rear power window switch (S20s3)
  • Right rear power window switch (S20s4)
  • Rear side window child safety lock switch (S20s5)
  • Outside mirror fold-in/out switch (S20s9) (with CODE 500 (Electric folding outside mirror))
  • Left outside mirror adjustment switch (S20s10)
  • Right outside mirror adjustment switch (S20s11)
  • Outside mirror adjustment switch (S20s12)
  • Left front seat adjustment switch group (S22) (with CODE 275 (Memory package)):
• Left front head restraint adjustment switch (S22s1)
• Left front seat inclination adjustment switch (S22s2)
• Left front seat fore/aft adjustment switch (S22s3)
• Left front seat height adjustment switch (S22s4)
• Left front seat backrest adjustment switch (S22s5)
• Left front memory function switch (S22s6)
• Left front memory 1 switch (S22s7)
• Left front memory 2 switch (S22s8)
• Left front memory 3 switch (S22s9)

The left front door control unit supplies the connected control elements with c. 58d.

Interior CAN

The left front door control unit reads in the following signals via the interior CAN:

• Terminal status of terminal 15
• 'Reverse gear engaged' signal
• CL locking unlocking/locking request
• PRE-SAFE® adjustment request
• Move to memory position request (with CODE 275 (Memory package))
• Convenience feature request
• Crash signal

The functions that use these signals are described in the individual function descriptions (see appropriate block diagram or function schematic).

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components

The left front door control unit actuates the following components over direct lines:

• Left front door lock:
  • Left front door central locking motor (A85m1)
  • Left front door additional door lock actuator motor (with code (A85m4) with CODE 885 Extended theft protection))
• Left outside mirror turn signal lamp (E6/5)
• Left front door exit and warning lamp (E173)
• Left front door handle illumination (E17/11)
• Left front door ambiance illumination (E17/43) (with CODE 876 (Interior light package))
• Left front door power window motor
• Left front door power closing actuator motor (M14/21) (with CODE 883 (Power closing))
• Left outside mirror:

• Left outside mirror ambient lamp (M21/1e1)
• Readiness/warning indicator for left Blind Spot Assist (M21/1e2) (with code (234) Blind Spot Assist or code (237) Active Blind Spot Assist)
• Mirror dimming (M21/1h1) (with CODE 249 (Automatically dimming mirror))
• Vertical inclination adjustment actuator motor (M21/1m1)
• Horizontal inclination adjustment actuator motor (M21/1m2)
• Electric fold-in/out outside mirror motor (M21/1m3) (with CODE 500 (Electric folding outside mirror))
• Mirror heater (M21/1r1)

Transmitting signals

The left front door control unit sends signals over the following connections:

• Left front door LIN
• Interior CAN

Left front door LIN

The left front door control unit transmits the following signals via the left front door LIN:

• Left outside mirror adjustment switch or right outside mirror adjustment switch status indication request
• Rear side window child safety lock status indication request

Interior CAN

The left front door control unit reads in the following signals via the interior CAN:

• Opening/closing request for power windows
• Adjusting right outside mirror request
• Convenience feature mode
• Convenience feature direction
• Central locking status
• Door status (open/closed)
• Seat adjustment request (with CODE 275 (Memory package))

The functions that use these signals are described in the individual function descriptions (see appropriate block diagram or function schematic).

Wiring diagram for left front door control unit (DCU)

PE72.29-P-2101-97NBA
