Prepare Panoramic Roof Frame For Installation - AR77.21-P-0800-02GQC
MODEL 292 with CODE 413 (Automatic panoramic sliding sunroof)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1031-02A | Glazing repair kit 500662 01/03/05/07/09/11 | A 973 670 00 93 |
| BR00.45-Z-1135-02A | Repair kit for installing windshields, 1-component adhesive | A 221 670 81 01 |
The bonding area must be free of dust and grease. Otherwise the adhesive force of the adhesive material starts to decrease.

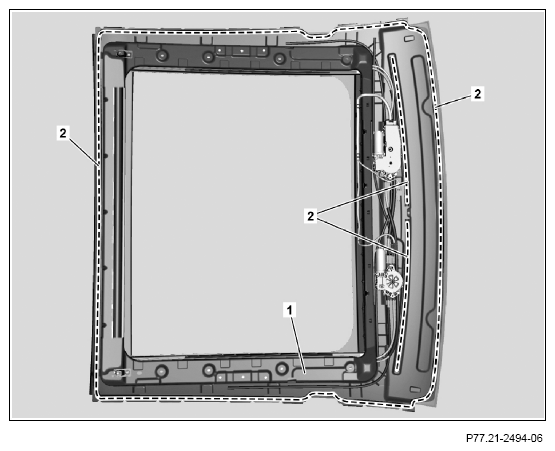

- Check panoramic roof frame (1) with all detachable body components for damage.
- Install cup suction tool on outer side of panoramic roof frame (1) and lay panoramic roof frame (1) down on suitable subsurface with inside pointing upward.
- Apply cleaner with one part of power towel to bonding surfaces (2) on panoramic roof frame (1) and wipe off with other part of paper towel.
Use cleaner and paper towel from repair kit for installing window.
Apply cleaner only to bonding surfaces (2) and allow to air-dry completely.
