Prepare Front Glass Cover Body Flange For Installation - AR77.21-P-7010-02GQC

MODEL 292 with CODE 413 (Automatic panoramic sliding sunroof)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1135-02A	Repair kit for installing windshields, 1-component adhesive	A 221 670 81 01

The bonding area must be free of dust and grease. Otherwise the adhesive force of the adhesive material starts to decrease.

Only use materials from repair kit approved and always observe processing notes included. Otherwise the adhesive force of the adhesive material starts to decrease.

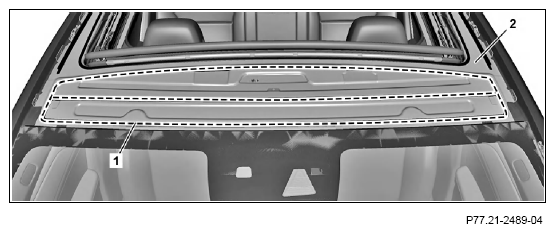

Cut down present glue beads on bonding surfaces (1) to a height of approx. 1 mm to max. 2 mm.
Do not leave more than 2 mm of the existing adhesive beads.
Remove remaining pieces not cut off completely from adhesive beads.
If installed.
Remove cutting residues from panoramic sliding roof frame (2).
Repair paint damage on panoramic sliding roof frame (2).
Use only primer filler and paints approved by Daimler AG.
Primer Apply primer to bonding surfaces (1) where no remaining adhesive is present.
