Install Front Glass Cover - AR77.21-P-7010-05GQC

MODEL 292 with CODE 413 (Automatic panoramic sliding sunroof)

Courtesy of MERCEDES-BENZ USA

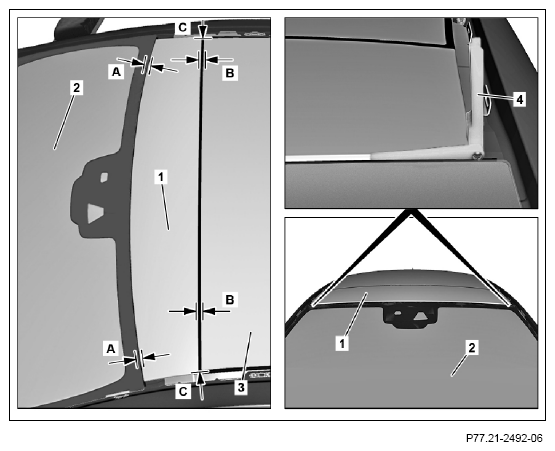

1. Align front glass cover (1) in relation to windshield (2) and panoramic sliding roof (3) according to gap dimensions (A, B) determined during removal.

   Observe transitions (C). The front glass cover (1) must be flush on the left and right with the panoramic sliding roof (3).

2. Insert feeler gauges (4) adjusted to gap dimension (A) between front glass cover (1) and windshield (2).

   The feeler gauges (4) serve as spacers during the curing time of the adhesive.

3. Carefully remove cup suction tool.
4. Place suitable loads on front glass cover (1) during the curing time of the adhesive.

Use weights with large surface such as sandbags. Otherwise the front glass cover (1) can be damaged.
