Apply Glue For Panoramic Roof Frame - AR77.21-P-0800-03GQC
MODEL 292 with CODE 413 (Automatic panoramic sliding sunroof)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1089-02A | Glazing repair kit, 1-component adhesive, replaced by: A 221 670 81 01 | A 221 670 21 01 |
| BR00.45-Z-1135-02A | Repair kit for installing windshields, 1-component adhesive | A 221 670 81 01 |
The bonding area must be free of dust and grease. Otherwise the adhesive force of the adhesive material starts to decrease.

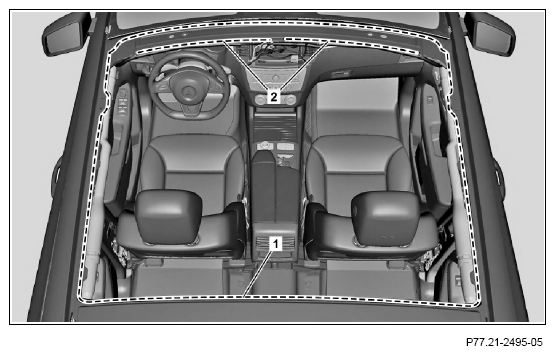

- Guide electric cartridge gun application nozzle on bonding surfaces (1) along body flange. Uniformly apply Ø 4.25 mm adhesive bead.
- Immediately remove soiling caused by adhesive.
If installed.
