Apply Adhesive Material To Front Glass Cover - AR77.21-P-7010-04GQC
MODEL 292 with CODE 413 (Automatic panoramic sliding sunroof)
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1142-02A | Adhesive parts kit (with heptane cleaner) | A 451 989 01 71 |
The bonding area must be free of dust and grease. Otherwise the adhesive force of the glue starts to decrease.

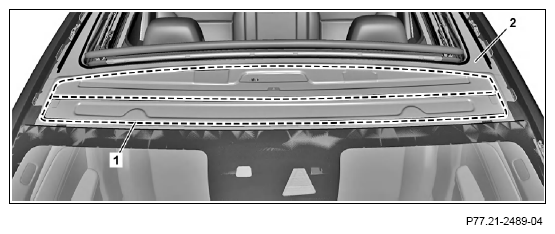

- Guide application nozzle of cartridge gun on bonding surfaces (1) along panoramic sliding roof frame (2). Uniformly apply Ø 4.25 mm adhesive bead.
- Immediately remove soiling caused by adhesive.
If installed.
