Panoramic Sliding Roof - clean and lubricate guide mechanism - AP77.20-P-7732A

MODEL 177, 213, 238, 253, 292 with CODE 413 (Automatic panoramic sliding sunroof)

Shown on model 292 with code 413 (Panoramic sliding sunroof)

Shown on model 292 with code 413 (Panoramic sliding sunroof)

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Preparatory activity
1	Open panoramic sliding sunroof (2)
	Clean

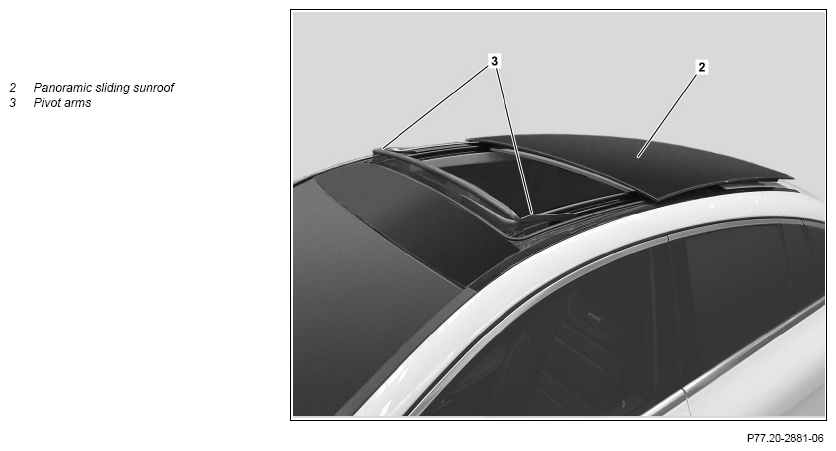

2	Use rag to clean pivot arm (3) of wind deflector

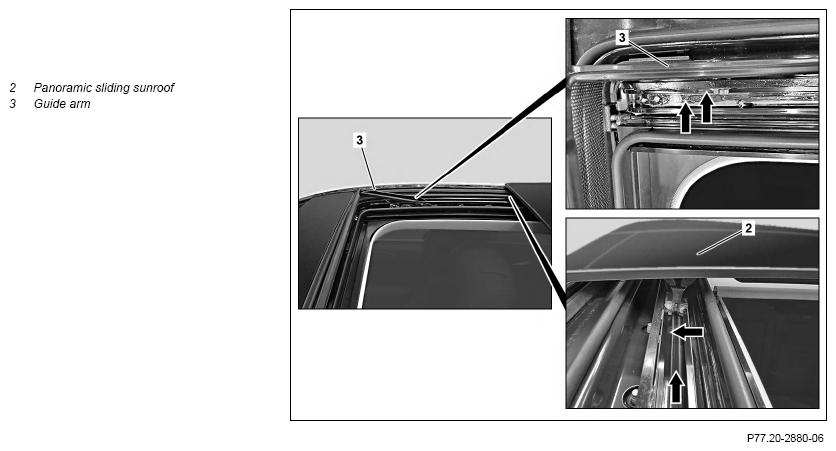

3	Use rag to clean entire length of guide rails (arrows)
	Lubricate
4	Apply light coating of grease to pivot arm (3) of wind deflector	Synthetic grease, sliding roof 500 g, DB supply specification 6827.60	*BR00.45-Z-1004-06A
5	Apply light coating of grease to contact surfaces of guide rails (arrows) over the entire length	Synthetic grease, sliding roof 500 g, DB supply specification 6827.60	*BR00.45-Z-1004-06A
6	Perform function test on panoramic sliding roof (2)
7	Remove excess grease
	Finishing activity
8	Close panoramic sliding roof (2)
