Remove/Install Mercedes Star - AR88.40-P-4050GQC

MODEL 292

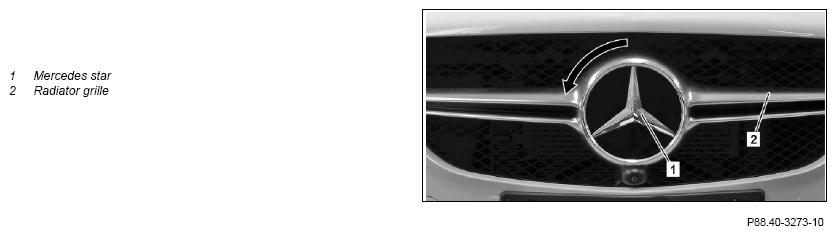

G11970569
REMOVINGINSTALLING Remove/install
1 Remove Mercedes star (1) approx. 15° counterclockwise and remove from radiator grille (2) INSTALLATION IMPORTANT Observe marking "TOP" on Mercedes star (1).
2 Install in the reverse order
