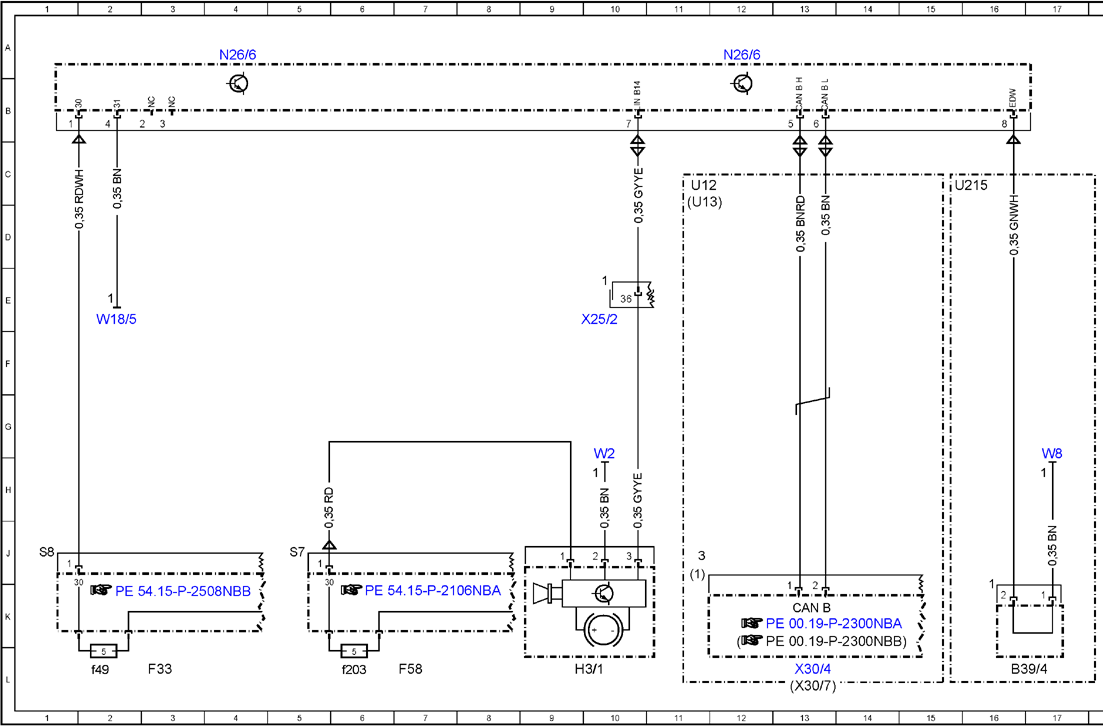

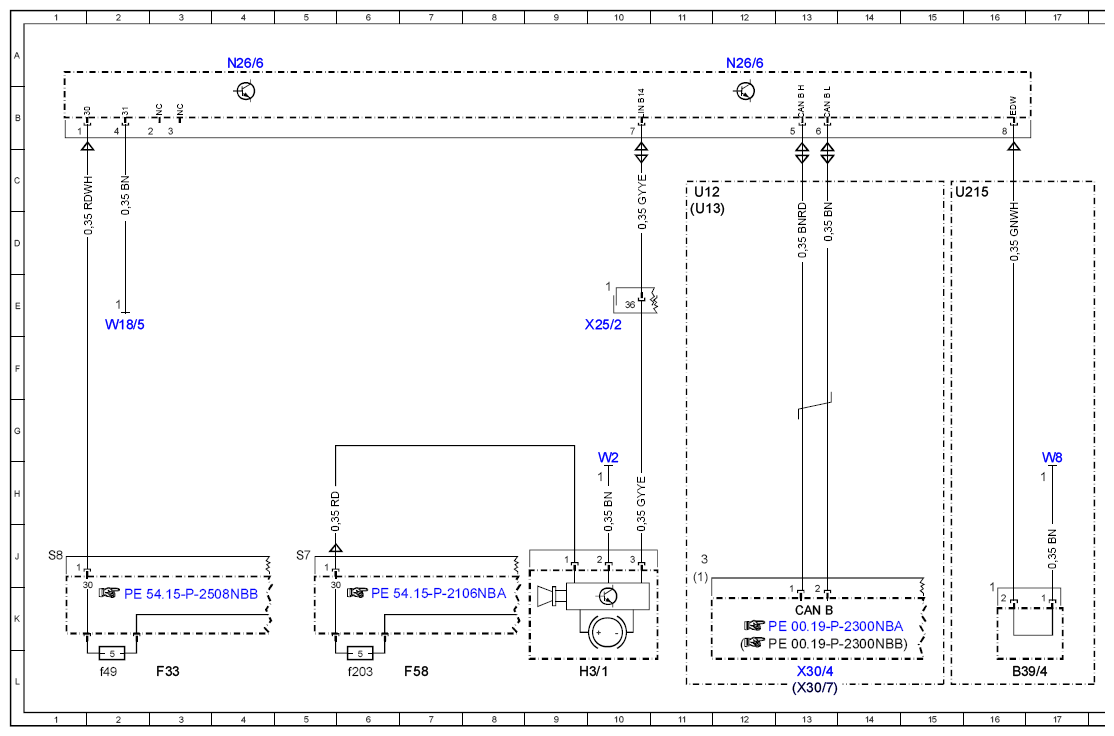

Electric Wiring Diagram For Anti-Theft Alarm System Control Unit (ATA) - PE80.50-P-2101-97NBA
MODEL 166 as of model year 2016 with CODE 551 (Anti-theft warning system) Control unit N26/6
MODEL 292 with CODE 551 (Anti-theft warning system) Control unit N26/6
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 23L |
| B39/4 | Rear window glass breakage sensor | 16L |
| CAN B | Interior CAN | 13K |
| F33 | Battery compartment prefuse box | 3L |
| F33f49 | Fuse 49 | 2L |
| F58 | Engine compartment fuse and relay module | 7L |
| F58f203 | Fuse 203 | 6L |
| H3/1 | Alarm siren | 9L |
| N26/6 | ATA [EDW]/towing sensor/interior motion sensor control unit | 4A |
| N26/6 | ATA [EDW]/towing sensor/interior motion sensor control unit | 12A |
| U12 | Valid for left-hand drive vehicles | 11C |
| U13 | Valid for right-hand drive vehicles | 11D |
| U215 | Valid for model series 292 | 15C |
| W18/5 | Roof ground point | 2E |
| W2 | Right front ground point at lamp unit | 10H |
| W8 | Liftgate ground point | 17H |
| X25/2 | Engine compartment/vehicle interior electrical connector | 10E |
| X30/4 | Right potential distributor electrical connector (CAN) | 13L |
| X30/7 | Left potential distributor electrical connector (CAN) | 13L |
