Adjust Camber And Caster At The Front Axle - AR40.20-P-0263GQ

MODEL 166, 292

MODIFICATION NOTES

19.05.2015 Bolt, torsion bar bracket/torsion bar to front axle carrier Model 166 with code 468 (Active driving stability (roll stability)) BA32.20-P-1001-02Q
02.07.2015 Camber at vehicle level Model 166 AMG BE40.20-P-1001-13AB

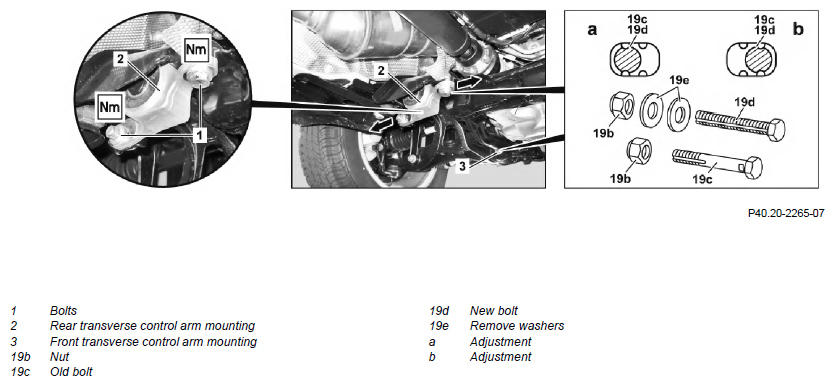

G11974440
  Adjust
1 Remove bolts (1) from rear transverse control arm mounting (2) or front transverse control arm mounting (3)
2 Remove bolts of stabilizer bar bracket to front axle carrier and swivel stabilizer bar downwards If camber has to be corrected on front transverse control arm mounting (3).
IMPORTANT The caster angle at the front axle can only be changed by adjusting the camber.
IMPORTANT The torsion bar must be detached carefully, as it is under tension.
3 Mount old bolt (19c) or new bolt (19d) to front transverse control arm mounting (3) or rear transverse control arm mounting (2) IMPORTANT On integral carriers with lock tabs on both sides on the front transverse control arm mounting, only the new bolt (19d) may be used. The new bolt (19d) of the rear transverse control arm mounting (2) can be inserted from above or below.
IMPORTANT The old bolt (19c) can be replaced by the new bolt (19d).
The new bolt (19d) may only be used with washers (19e).
4 Screw nut (19b) of old bolt (19c) or new bolt (19d) on up to contact surface If camber or caster cannot be adjusted.
IMPORTANT Do not tighten nut (19b) of old bolt (19c) or new bolt (19d) to ensure that the elastomer bearing of the lower control arm can twist when deflecting.
5 Rock vehicle to settle suspension If camber or caster cannot be adjusted.
6 Adjust camber IMPORTANT The adjustment (a) at the front of the lower transverse control arm towards the vehicle center causes a positive camber change.
IMPORTANT The adjustment (a) at the rear of the lower transverse control arm towards the vehicle center causes a reduction in caster.
IMPORTANT The adjustment (b) at the front of the lower transverse control arm towards the outside of the vehicle causes a negative camber change.
IMPORTANT The adjustment (b) at the rear of the lower transverse control arm towards outside of the vehicle causes an increase in caster.
    Camber at vehicle level *BE40.20-P-1001-13AB
    Permissible difference in front axle camber between right and left sides of vehicle *BE40.20-P-1002-13AB
7 Check caster   AR40.20-P-0322-03GQ
    Caster values, form *BE40.20-P-1001-20G
    Permissible difference in caster between right and left side of vehicle *BE40.20-P-1002-20G
    Absolute caster tolerance *BE40.20-P-1003-20G
8 Tighten nut (19b) of old bolt (19c) or new bolt (19d) NOTES
The old bolt (19c) or the new bolt (19d) must not be twisted after being fixed in place. When tightening the nut (19b) the old bolt (19c) or the new bolt (19d) must be counterheld.
Otherwise the lock tabs in the front axle carrier may be damaged.
9 Tighten bolts (1) on front transverse control arm mounting (3) or rear transverse control arm mounting (2) TORQUE SPECIFICATION Screw/bolt, lower transverse control arm at front to front axle carrier *BA33.20-P-1004-01R
    TORQUE SPECIFICATION Nut, lower control arm at bottom rear to front axle carrier *BA33.20-P-1005-01R
    TORQUE SPECIFICATION Screw/bolt, lower transverse control arm at outside rear to front axle carrier *BA33.20-P-1007-01R
10 Fasten torsion bar to front axle carrier If the camber on the front transverse control arm mounting (3) was corrected.
IMPORTANT The torsion bar must be mounted carefully, as it is under tension.
TORQUE SPECIFICATION Screw/bolt, torsion bar bracket/torsion bar to front axle carrier		 *BA32.20-P-1001-02Q
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE CAMBER

Number Designation Model 166.0 except code 489/491/Z04/Z05 Model 166.0 with code 489, model 166.8
BE40.20-P-1001-13AB Camber at vehicle level 5.26° ∠° - -1° 24' (± 30')
6.49° ∠° - -
7.97° ∠° - -
9.07° ∠° -0° 27' (± 30') -
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE CAMBER

Number Designation Model 166.0 with code 491 Model 166.0 with code Z04/Z05
BE40.20-P-1001-13AB Camber at vehicle level 5.26° ∠° - -1° 24' (± 30')
6.49° ∠° - -
7.97° ∠° -0° 43' (± 30') -
9.07° ∠° - -
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE CAMBER

Number Designation Model 166 AMG Model 292 except code 489
BE40.20-P-1001-13AB Camber at vehicle level 5.26° ∠° -1° 24' (± 30') -
6.49° ∠° - -1° 5' (± 30')
7.97° ° - -
9.07° ° - -
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE CAMBER

Number Designation Model 292 with code 489 Model 292 AMG
BE40.20-P-1001-13AB Camber at vehicle level 5.26° ∠° -1° 24' (± 30') -1° 24' (± 30')
6.49° ∠° - -
7.97° ∠° - -
9.07° ∠° - -
TEST AND ADJUSTMENT VALUES FOR CASTER

Number Designation Model 166 Model 292
BE40.20-P-1001-20G Caster values, form
See		 OF40.20-P-3000-00GQ OF40.20-P-3000-00GQ
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE CAMBER

Number Designation Model 166.0 except code 489/491/Z04/Z05 Model 166.0 with code 489, model 166.8
BE40.20-P-1002-13AB Permissible difference in front axle camber between right and left sides of vehicle ∠° ± 19' ± 19'
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE CAMBER

Number Designation Model 166.0 with code 491 Model 166.0 with code Z04/Z05
BE40.20-P-1002-13AB Permissible difference in front axle camber between right and left sides of vehicle ∠° ± 19' ± 19'
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE CAMBER

Number Designation Model 166 AMG Model 292 except code 489
BE40.20-P-1002-13AB Permissible difference in front axle camber between right and left sides of vehicle ∠° ± 19' ± 19'
TEST AND ADJUSTMENT VALUES FOR FRONT AXLE CAMBER

Number Designation Model 292 with code 489 Model 292 AMG
BE40.20-P-1002-13AB Permissible difference in front axle camber between right and left sides of vehicle ∠° ± 19' ± 19'
TEST AND ADJUSTMENT VALUES FOR CASTER

Number Designation Model 166 Model 292
BE40.20-P-1002-20G Permissible difference in caster between right and left side of vehicle ∠° ± 30' ± 30'
TEST AND ADJUSTMENT VALUES FOR CASTER

Number Designation Model 166 Model 292
BE40.20-P-1003-20G Absolute caster tolerance ∠° ± 30' ± 30'
FRONT AXLE TORSION BAR

Number Designation Model 166 except code 468 (ACTIVE CURVE SYSTEM) Model 166 with code 468 (ACTIVE CURVE SYSTEM)
BA32.20-P-1001-02Q Screw/bolt, torsion bar bracket/torsion bar to front axle carrier Stage 1 Nm 100 90
Stage 2 ∠° - 45
FRONT AXLE TORSION BAR

Number Designation Model 292 except code 468 (ACTIVE CURVE SYSTEM) Model 292 with code 468 (ACTIVE CURVE SYSTEM)
BA32.20-P-1001-02Q Screw/bolt, torsion bar bracket/torsion bar to front axle carrier Stage 1 Nm 100 90
Stage 2 ∠° - 45
WHEEL CONTROL, HUB

Number Designation Model 166 Model 292
BA33.20-P-1004-01R Screw/bolt, lower transverse control arm at front to front axle carrier Stage 1 Nm 120 120
Stage 2 ∠° 90 90
WHEEL CONTROL, HUB

Number Designation Model 166 Model 292
BA33.20-P-1005-01R Nut, lower control arm at bottom rear to front axle carrier Stage 1 Nm 65 65
Stage 2 ∠° 90 90
WHEEL CONTROL, HUB

Number Designation Model 166 Model 292
BA33.20-P-1007-01R Screw/bolt, lower transverse control arm at outside rear to front axle carrier Stage 1 Nm 130 130
Stage 2 ∠° 45 45
