Remove/Install Evaporator - AR83.30-P-5540GQ

MODEL 166, 292

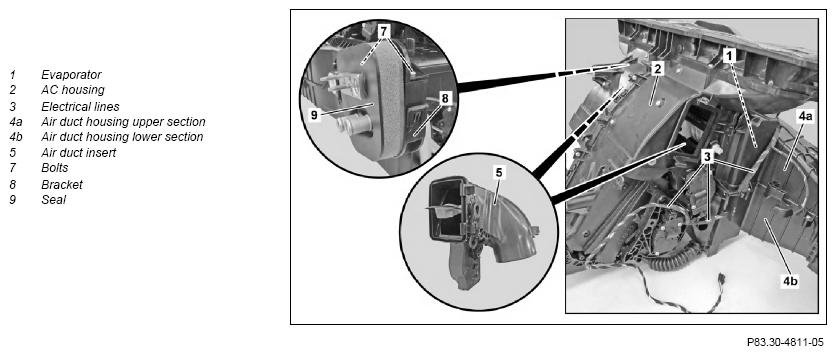

Shown on model 166

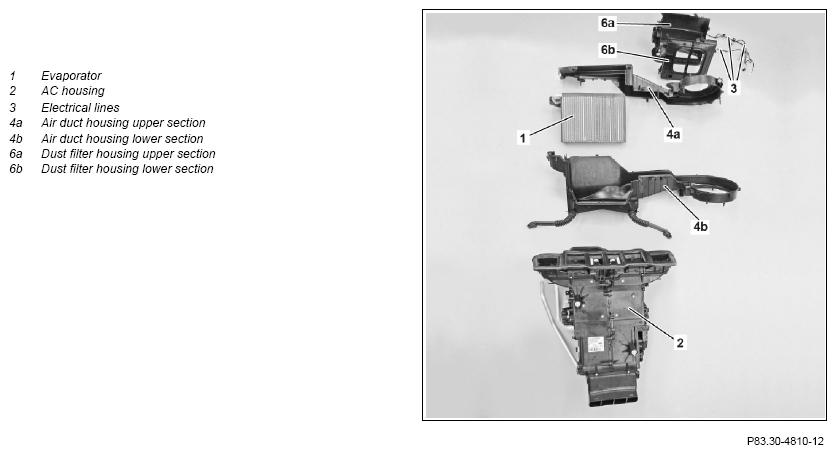

Shown on model 166

	Remove/install
1	Remove air conditioner housing (2)		AR83.30-P-5200GQ
2	Remove air conditioner housing (2) from instrument panel carrier
3	Disconnect electrical lines (3) from actuator motors and unclip from air conditioner housing (2) and air duct housing (4a, 4b) and remove	The number of electrical lines (3) varies depending on the vehicle equipment. The correct routing of the electrical lines (3) on the air conditioner housing (2) and air duct housing (4a, 4b) must be ensured.
4	Remove air duct inserts (5)
5	Remove seal (9)
6	Remove screw/bolts (7)
7	Unclip bracket (8) at air conditioner housing (2)
8	Remove air duct housing (4a, 4b) from air conditioner housing (2)
9	Remove activated charcoal fine particle filter		AP83.00-P-8384C
10	Remove dust filter housing upper section (6a) from dust filter housing lower section (6b)	It must be ensured that seal is seated correctly on the dust filter housing (6a, 6b).
11	Remove dust filter housing lower section (6b) from air duct housing (4a, 4b)
12	Remove combination filter housing upper section (4a) from combination filter housing lower section (4b)
13	Pull evaporator (1) upwards out of air duct housing lower section (4b)
14	Install in the reverse order
