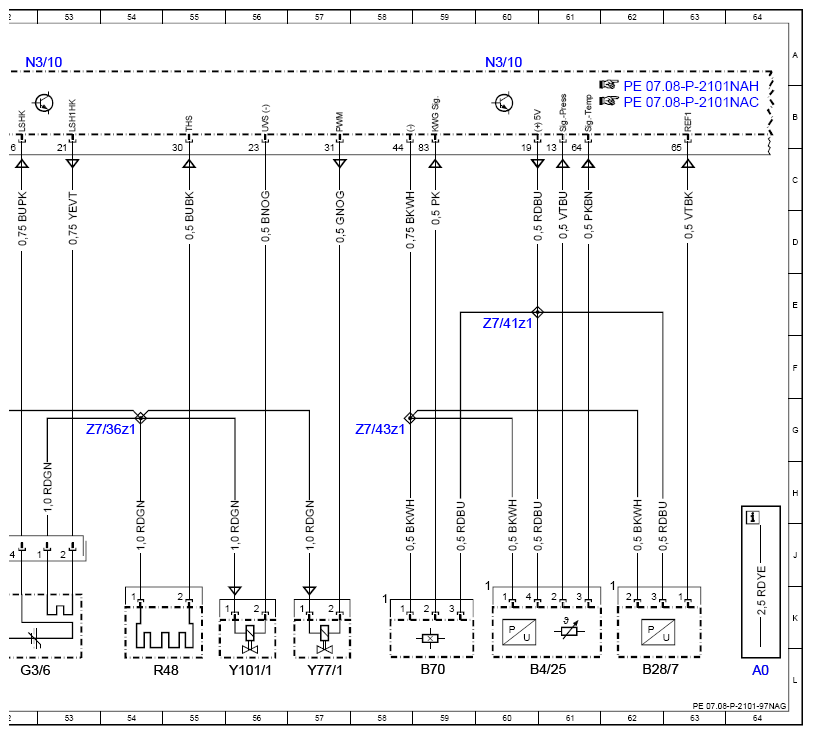

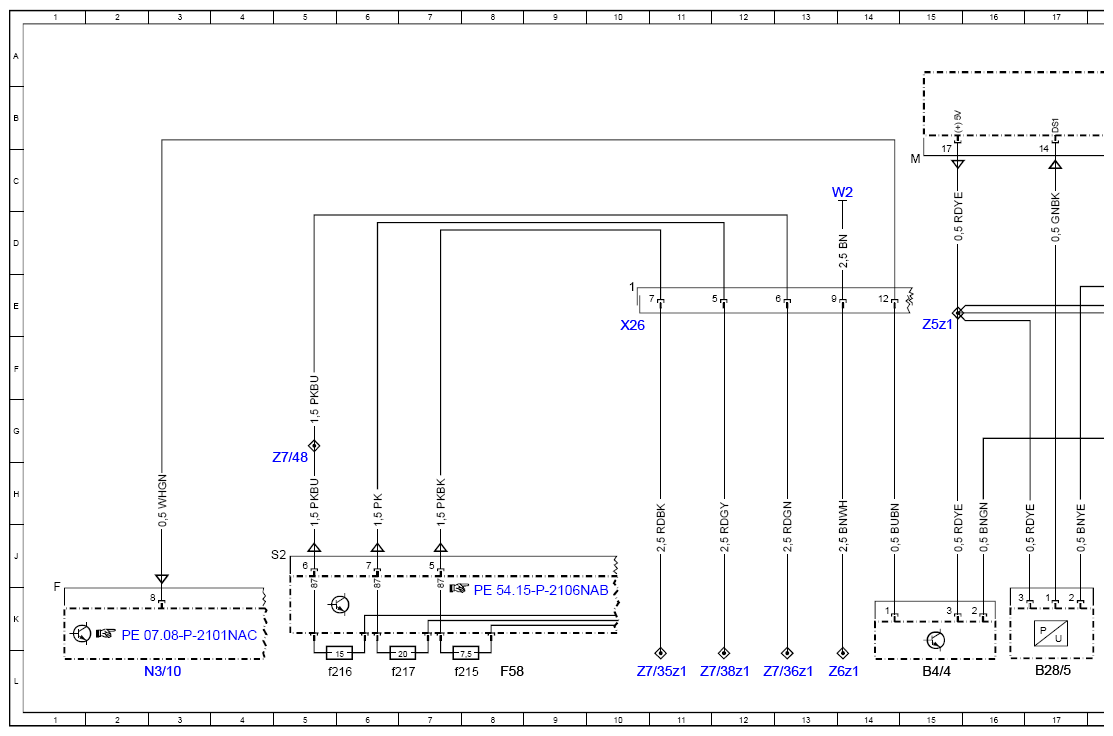

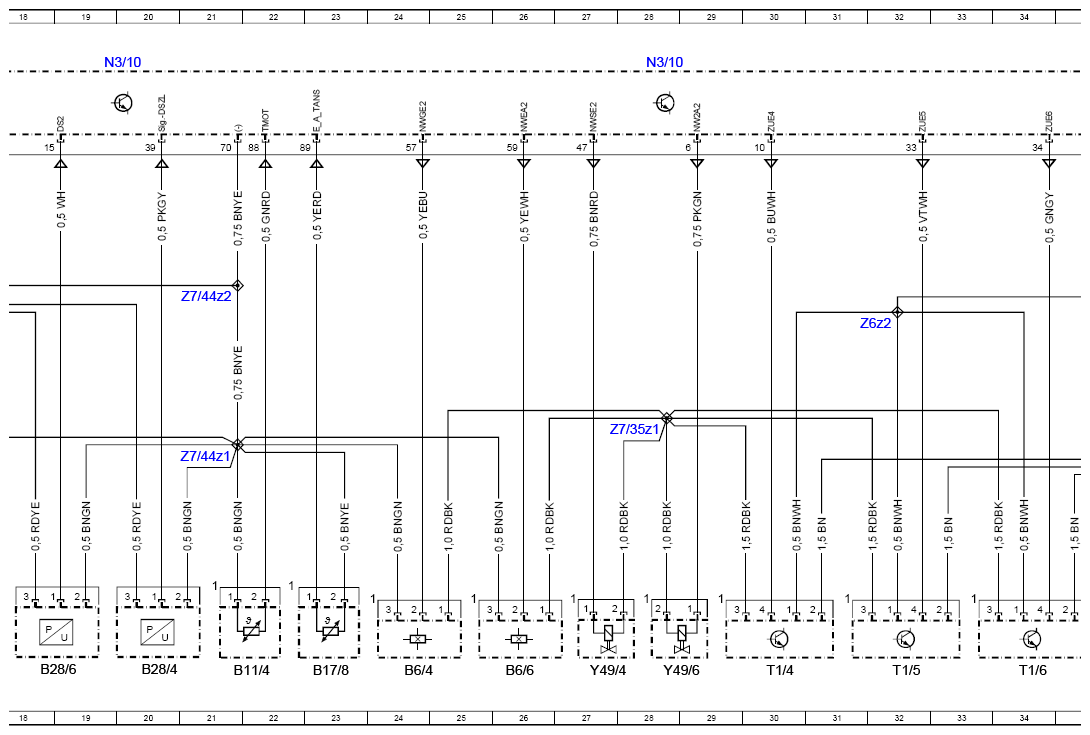

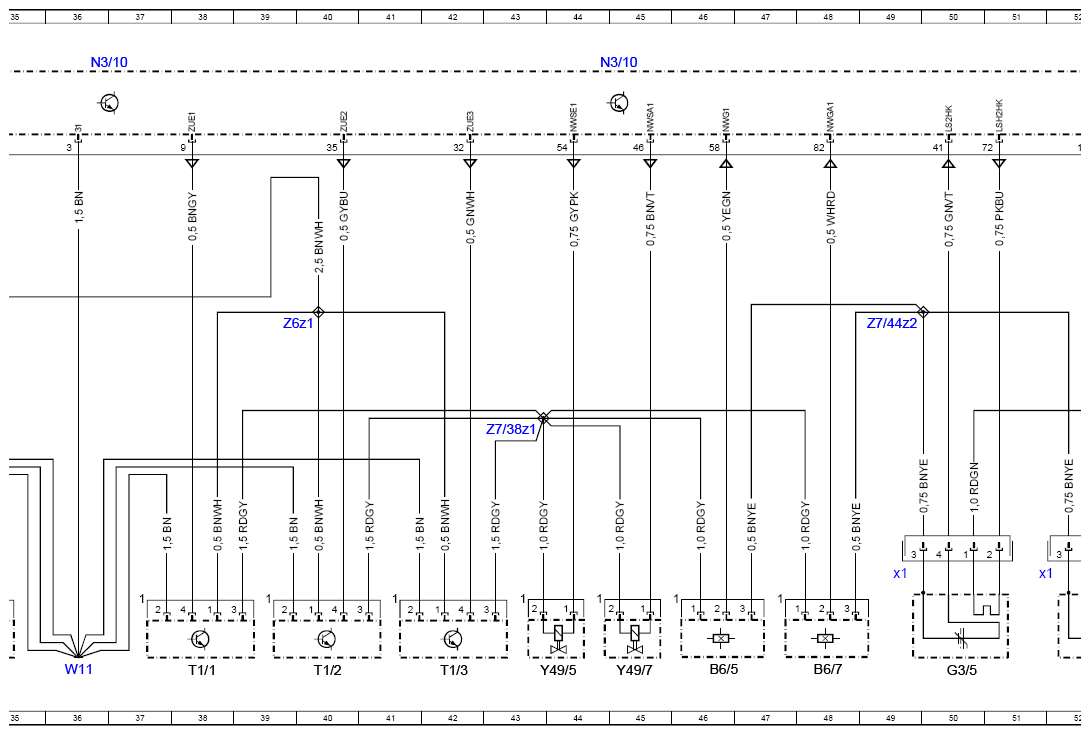

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97NAG
ENGINE 276.8 in MODEL 166 up to model year 2016 Control unit N3/10, engine connector, sheet 1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 64L |
| B11/4 | Coolant temperature sensor | 22L |
| B17/8 | Charge air temperature sensor | 23L |
| B28/4 | Pressure sensor downstream of left cylinder bank air filter | 20L |
| B28/5 | Pressure sensor downstream of air filter | 17L |
| B28/6 | Pressure sensor upstream of throttle valve | 18L |
| B28/7 | Pressure sensor downstream of throttle valve | 62L |
| B4/25 | Fuel tank pressure and temperature sensor | 61L |
| B4/4 | Purging pressure sensor | 15L |
| B6/4 | Left intake camshaft Hall sensor | 24L |
| B6/5 | Right intake camshaft Hall sensor | 46L |
| B6/6 | Left exhaust camshaft Hall sensor | 26L |
| B6/7 | Right exhaust camshaft Hall sensor | 48L |
| B70 | Crankshaft Hall sensor | 59L |
| F58 | Engine compartment fuse and relay module | 8L |
| F58f215 | Fuse 215 | 7L |
| F58f216 | Fuse 216 | 5L |
| F58f217 | Fuse 217 | 6L |
| G3/5 | Left oxygen sensor downstream of catalytic converter | 50L |
| G3/6 | Right oxygen sensor downstream of catalytic converter | 52L |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 49J |
| G3/6x1 | Electrical connector for right oxygen sensor downstream of catalytic converter | 51J |
| N3/10 | ME-SFI [ME] control unit | 3L |
| N3/10 | ME-SFI [ME] control unit | 19A |
| N3/10 | ME-SFI [ME] control unit | 28A |
| N3/10 | ME-SFI [ME] control unit | 36A |
| N3/10 | ME-SFI [ME] control unit | 45A |
| N3/10 | ME-SFI [ME] control unit | 52A |
| N3/10 | ME-SFI [ME] control unit | 60A |
| R48 | Coolant thermostat heating element | 54L |
| T1/1 | Cylinder 1 ignition coil | 38L |
| T1/2 | Cylinder 2 ignition coil | 40L |
| T1/3 | Cylinder 3 ignition coil | 42L |
| T1/4 | Cylinder 4 ignition coil | 30L |
| T1/5 | Cylinder 5 ignition coil | 32L |
| T1/6 | Cylinder 6 ignition coil | 34L |
| W11 | Combustion engine ground point | 36L |
| W2 | Right front ground point at lamp unit | 14C |
| X26 | Interior and engine wiring harness electrical connector | 10E |
| Y101/1 | Left bypass air switchover valve | 56L |
| Y49/4 | Left intake camshaft solenoid | 27L |
| Y49/5 | Right intake camshaft solenoid | 44L |
| Y49/6 | Left exhaust camshaft solenoid | 28L |
| Y49/7 | Right exhaust camshaft solenoid | 45L |
| Y77/1 | Boost pressure control pressure transducer | 57L |
| Z5z1 | Sensor voltage supply connector sleeve | 15E |
| Z6z1 | Circuit 31 connector sleeve | 13L |
| Z6z1 | Circuit 31 connector sleeve | 40E |
| Z6z2 | Circuit 31 connector sleeve | 32E |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 10L |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 28G |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 13L |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 54G |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 12L |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 43G |
| Z7/41z1 | Sensor power supply connector sleeve | 60E |
| Z7/43z1 | Sensor ground line connector sleeve | 58G |
| Z7/44z1 | Sensor ground line connector sleeve | 21G |
| Z7/44z2 | Sensor ground line connector sleeve | 21E |
| Z7/44z2 | Sensor ground line connector sleeve | 49E |
| Z7/48 | Circuit 87D2 connector sleeve | 5G |
