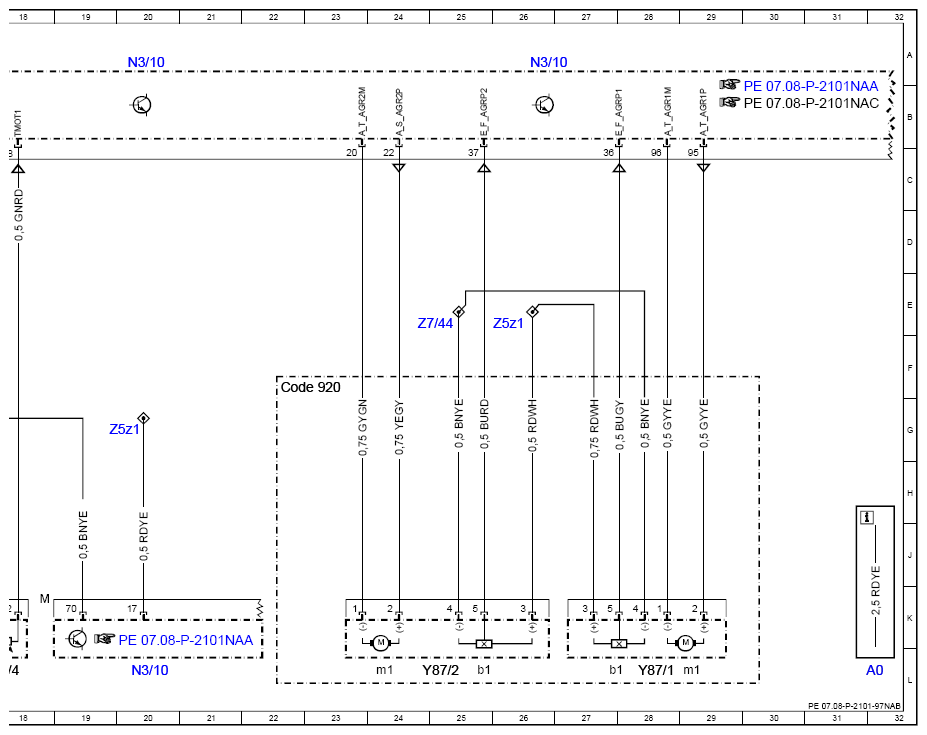

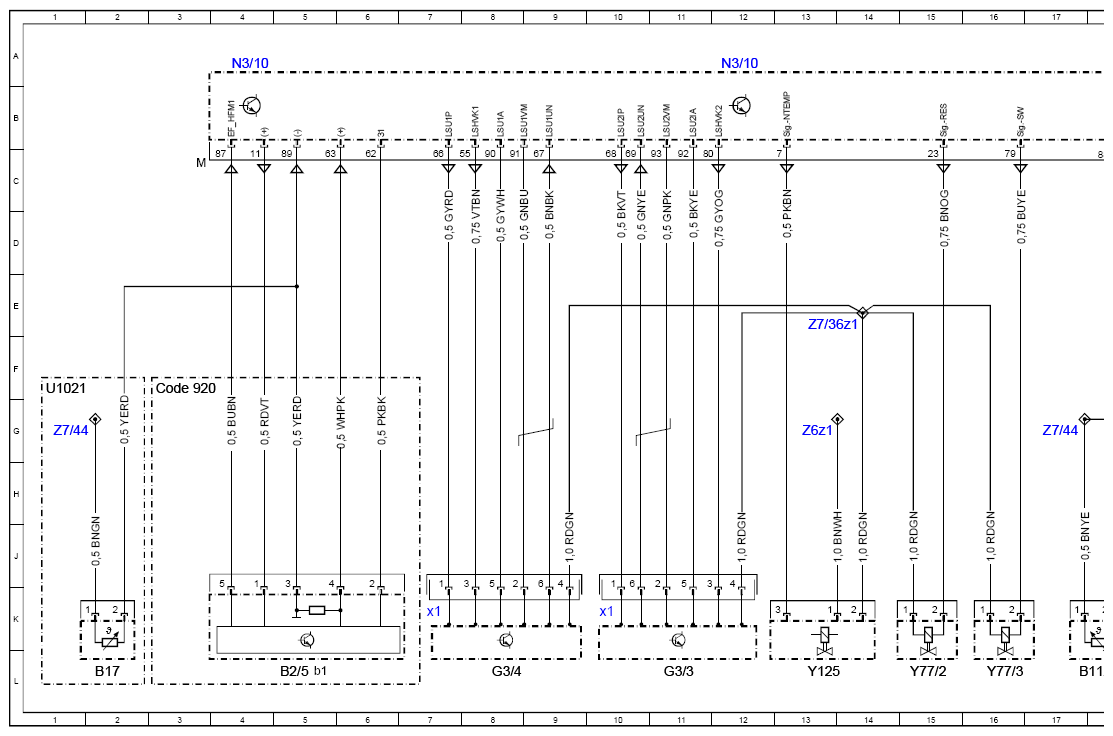

Wiring Diagram For Gasoline Direct Injection System Control Unit - PE07.08-P-2101-97NAB
ENGINE 276.9 in MODEL 166 up to model year 2016 Control unit N3/10, engine connector, sheet 2
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 32L |
| B11/4 | Coolant temperature sensor | 18L |
| B17 | Intake air temperature sensor | 2L |
| B2/5 | Hot film mass air flow sensor | 5L |
| B2/5b1 | Intake air temperature sensor | 5L |
| Code 920 | Gasoline direct injection with stratified charge | 3F |
| Code 920 | Gasoline direct injection with stratified charge | 22F |
| G3/3 | Left oxygen sensor upstream of catalytic converter | 11L |
| G3/3x1 | Electrical connector for left oxygen sensor upstream of catalytic converter | 10K |
| G3/4 | Right oxygen sensor upstream of catalytic converter | 8L |
| G3/4x1 | Electrical connector for right oxygen sensor upstream of catalytic converter | 7K |
| N3/10 | ME-SFI [ME] control unit | 4A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 20A |
| N3/10 | ME-SFI [ME] control unit | 20L |
| N3/10 | ME-SFI [ME] control unit | 26A |
| U1021 | Valid without Code 920 Direct fuel injection with stratified charge | 1F |
| Y125 | Low-temperature circuit shutoff valve | 13L |
| Y77/2 | Intake manifold resonance flap switchover valve | 15L |
| Y77/3 | Intake manifold selector drum switchover valve | 16L |
| Y87/1 | Right exhaust gas recirculation positioner | 28L |
| Y87/1b1 | Right exhaust gas recirculation Hall sensor | 27L |
| Y87/1m1 | Right exhaust gas recirculation actuation motor | 29L |
| Y87/2 | Left exhaust gas recirculation positioner | 25L |
| Y87/2b1 | Left exhaust gas recirculation Hall sensor | 25L |
| Y87/2m1 | Left exhaust gas recirculation actuation motor | 24L |
| Z5z1 | Sensor voltage supply connector sleeve | 26E |
| Z5z1 | Sensor voltage supply connector sleeve | 20G |
| Z6z1 | Circuit 31 connector sleeve | 13G |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 13E |
| Z7/44 | Sensor ground connector sleeve | 17G |
| Z7/44 | Sensor ground connector sleeve | 1G |
| Z7/44 | Sensor ground connector sleeve | 25E |
