Remove/Install Flywheel/Drive Plate - AR03.30-P-8001MLJ

ENGINE 157, 278 in MODEL 166

ENGINE 157, 278 in MODEL 292

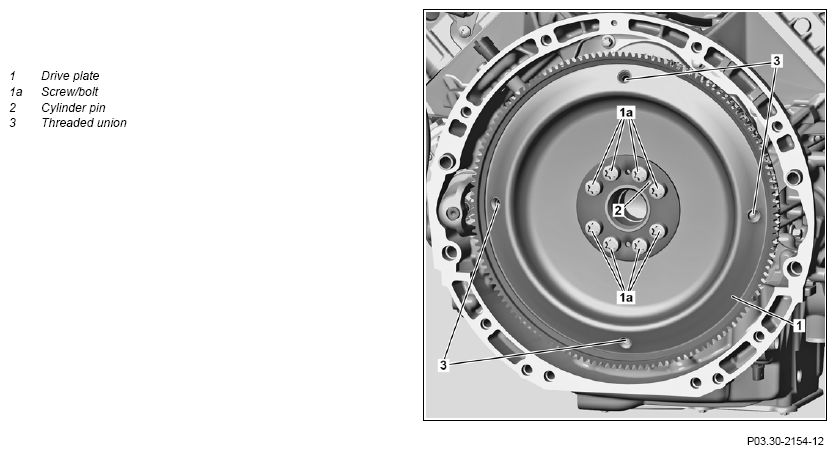

G11975012

	Remove/install
1	Remove transmission with torque converter	Model 166 with engine 278 with transmission 722.9 Model 292 with engine 278 with transmission 722.90	AR27.10-P-0500GQ
2	Install retaining lock for crankshaft/starter ring gear		AR03.30-P-5000GQ
3	Remove screw/bolts (1a) from drive plate (1)	Do not use any impact wrench/driver or compressed air tool to screw the screw/bolts (1a) in and out. The thread in the crankshaft flange will be damaged otherwise. Replace screw/bolts (1a).	AR03.30-P-8001-02MM
		Bolt, starter ring gear/drive plate to crankshaft	*BA03.30-P-1002-01M
4	Remove drive plate (1) from crankshaft flange	The cylinder pin (2) determines the installation position of drive plate (1).
	Check
5	Check threaded union (3) in the drive plate (1)	For damaged or loose threaded unions (3): ↓ Install new drive plate (1).
6	Install in the reverse order
7	Perform default initialization and then sensor rotor adaptation using the diagnostic system	Only perform when replacing the clutch plate (1).
		Menu guidance: ECU Adaptations Teach-in processes	AD00.00-P-2000-04A

FLYWHEEL, DRIVE PLATE, VIBRATION DAMPER, STARTER RING GEAR

Number	Designation			Engine 157	Engine 278
BA03.30-P-1002-01M	Bolt, starter ring gear/drive plate to crankshaft	Stage 1	Nm	20	20
		Stage 2	Nm	45	45
		Stage 3	∠°	90	90
