Oil Line Removal And Installation - AR18.30-P-6850MLJ
ENGINE 157, 278 in MODEL 166
ENGINE 157, 278 in MODEL 292

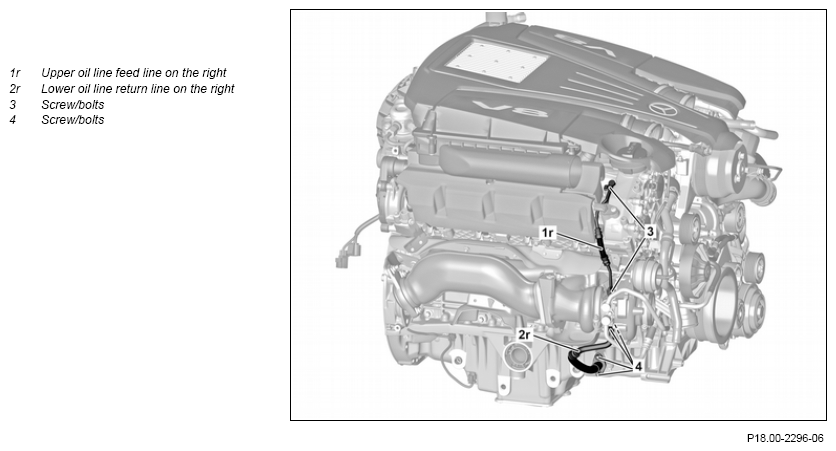

Shown on engine 278

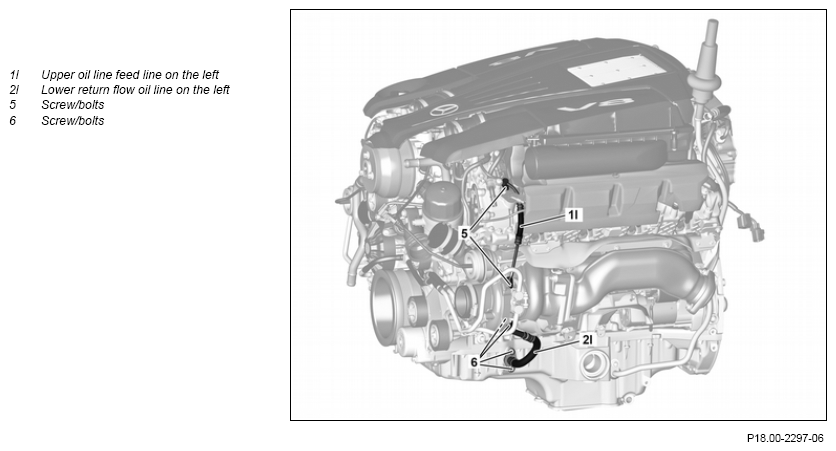

Shown on engine 278
| Remove/install | |||
| 1 | Remove engine air intake duct upstream of air filter | When removing the upper oil line feed line on the left (1l) and upper oil line feed line on the right (1r) | |
| 2 | Disconnect electrical connections on the left or right exhaust camshaft Hall sensor | When removing the upper oil line feed line on the left (1l) and upper oil line feed line on the right (1r) | |
| 3 | Remove screw/bolts (3) or screw/bolts (5) on cylinder head cover and upper oil line feed line on the left (1l) or upper oil line feed line on the right (1r) from cylinder head cover | When removing the upper oil line feed line on the left (1l) and upper oil line feed line on the right (1r) | |
| *BA09.40-P-1003-01R | |||
| Figure | |||
| 4 | Drain engine oil and catch in a suitable container | When removing the lower return flow oil line on the left (2l) or lower return flow oil line on the right (2r) | |
| Engine 157 in model 166, 292 | AP18.00-P-0101EWG | ||
| Engine 278 in model 166, 292 | AP18.00-P-0101EL | ||
| 5 | Remove alternator | When removing the lower return flow oil line on the right (2r) | AR15.40-P-5032MLJ |
| 6 | Detach refrigerant compressor and lay with in engine compartment at the front with lines connected | When removing the lower return flow oil line on the left (2l) |
|
| *BA83.55-P-1001-01M | |||
| 7 | Remove screw/bolts for the heat shield on lower return flow oil line on the right (2r) or lower return flow oil line on the left (2l) | When removing the lower return flow oil line on the right (2r) or lower return flow oil line on the left (2l) |
*BA09.40-P-1007-01R |
| 8 | Remove screw/bolts (4) or screw/bolts (6) on ATL and remove lower return flow oil line on the right (2r) or lower return flow oil line on the left (2l) from ATL | When removing the lower return flow oil line on the right (2r) or lower return flow oil line on the left (2l) |
*BA09.40-P-1004-01R |
| Figure | |||
| 9 | Remove screw/bolts (4) or screw/bolts (6) on oil pan and remove lower return flow oil line on the right (2r) or lower return flow oil line on the left (2l) downwards | When removing the lower return flow oil line on the right (2r) or lower return flow oil line on the left (2l) |
*BA09.40-P-1004-01R |
| Figure | |||
| 10 | Install in the reverse order | ||
| Check | |||
| 11 | Check engine oil level; correct if necessary | ||
| Engine 157 in model 166, 292 | AP18.00-P-0101EWG | ||
| Engine 278 in model 166, 292 | AP18.00-P-0101EL | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 12 | Carry out an engine test run, checking the engine for proper operation and leaktightness |
TURBOCHARGER
| Number | Designation | Engine 157 | Engine 278 | |
|---|---|---|---|---|
| BA09.40-P-1003-01R | Bolt, oil line to exhaust gas turbocharger/cylinder head | Nm | 9 | 9 |
TURBOCHARGER
| Number | Designation | Engine 157 | Engine 278 | |
|---|---|---|---|---|
| BA09.40-P-1004-01R | Bolt, oil return line to turbocharger/oil pan | Nm | 9 | 9 |
TURBOCHARGER
| Number | Designation | Engine 157 | Engine 278 | |
|---|---|---|---|---|
| BA09.40-P-1007-01R | Bolt, heat shield to exhaust gas turbocharger/cylinder head | Nm | 9 | 9 |
REFRIGERANT COMPRESSOR
| Number | Designation | Engine 157 | Engine 278 | |
|---|---|---|---|---|
| BA83.55-P-1001-01M | Screw/bolt, refrigerant compressor to timing case/crankcase/engine support | Nm | 20 | 20 |
