Install Rear Wheel Well Section - AR63.10-P-0662-03CW

MODEL 204

MODEL 166, 207.3/4, 212, 218

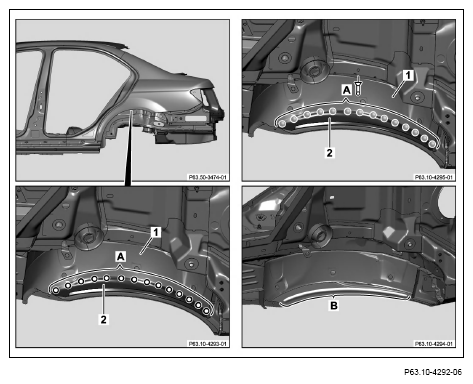

Shown on model 204.0

1. Install outer rear wheel well (2) section, fit and fix in place.
2. Drill rivet holes in outer rear wheel well section (2) with Ø 5 mm bit (area A).
3. Remove outer rear wheel well section (2).
4. Deburr rivet holes on outer rear wheel well section (2) on both sides.
5. Coat insides of riveted joints with zinc dust paint.
6. Install rubber window spacers from glazing repair kit as spacers on rear fender at uniform intervals (area B).
7. Apply sealant to rear fender (area B).
8. Install outer rear wheel well (2) section, fit and fix in place.
9. Rivet outer rear wheel well section (2) an outer rear wheel well (1) with Ø 4.8X8 steel/steel rivet (area A).
10. Remove shavings and drill chips.
