Cut Off Rear Wheel Well Section - AR63.10-P-0662-01CW

MODEL 204

MODEL 166, 207.3/4, 212, 218

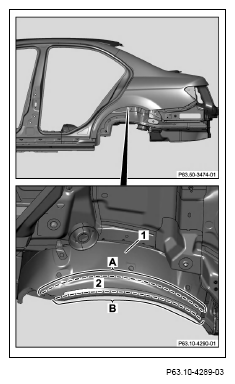

Shown on model 204.0

Scribe separation point on outer rear wheel well (1) along bead (area A).

Cut outer rear wheel well (1) at separation point (area A).

Do not damage rear fender below (area A).

Cut outer rear wheel well section (2) at separation point (area B).

Outer rear wheel well section (2) is glued to rear fender in area B.

Remove outer rear wheel well section (2).

Remove remaining adhesive in area B.

A maximum of 2 mm of adhesive residue may be left Pull off loose adhesive material (remaining pieces which are not completely cut off).

Repair bare parts with touchup applicator.

Remove shavings and drill chips.
