Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01K
Model 253.3## (except 253.364/388/389) 1#, Model 253.9## (except 253.964/988/989/992/993) 1#
with code 459 (DYNAMIC BODY CONTROL suspension with adjustment damping)
except code 482 (Suspension for greater ground clearance)
except code 485 (AGILITY CONTROL suspension with comfort tuning)
except code 486 (Sports suspension)
except code 489 (AIRMATIC)
except code 821 (Additional parts for Brazil vehicles)
| 24.11.2016 | Document validity adapted |

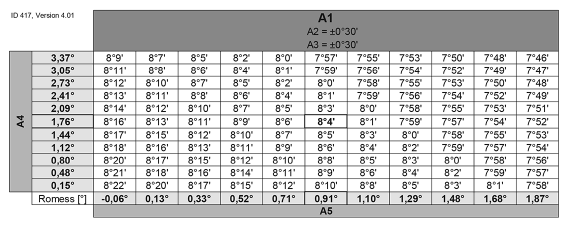

- A1 front axle caster values
A2 absolute tolerance
A3 left/right tolerance
A4 front axle vehicle level
A5 rear axle vehicle level
- B1 front axle toe values
B2 absolute tolerance
B3 left/right tolerance
B4 front axle vehicle level
- C1 rear axle toe values
C2 absolute tolerance
C3 left/right tolerance
C4 rear axle vehicle level
- F1Toe-out angle
F2Toe-out angle with inner wheel steered through 20°
F3Toe-out angle tolerance
- D1 front axle camber values
D2 absolute tolerance
D3 left/right tolerance, see table D6
D4 level value for required front axle camber side
D5 level on opposite side
D6 front axle camber left/right tolerance
D7 value from camber, left/right nomogram
D8 left front axle
D9 right front axle

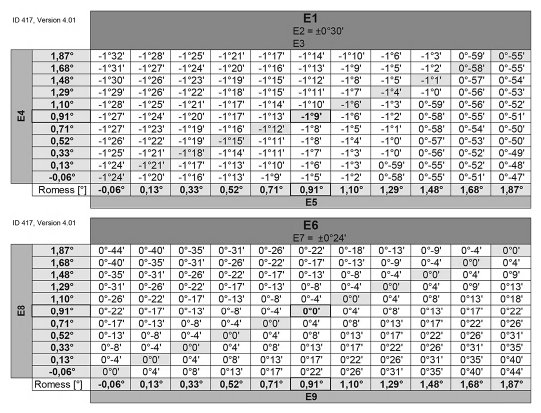

- E1 rear axle camber values
E2 absolute tolerance
E3 left/right tolerance, see table E6
E4 level value for required rear axle camber side
E5 level on opposite side
E6 rear axle camber left/right tolerance
E7 value from camber, left/right nomogram
E8 left rear axle
E9 right rear axle
