Remove/Install Wheel Carrier - AR35.20-P-0115LWX

Model 253.388/389/988/989

MODIFICATION NOTES

18.07.2018

"Basic date", added.

Step 5

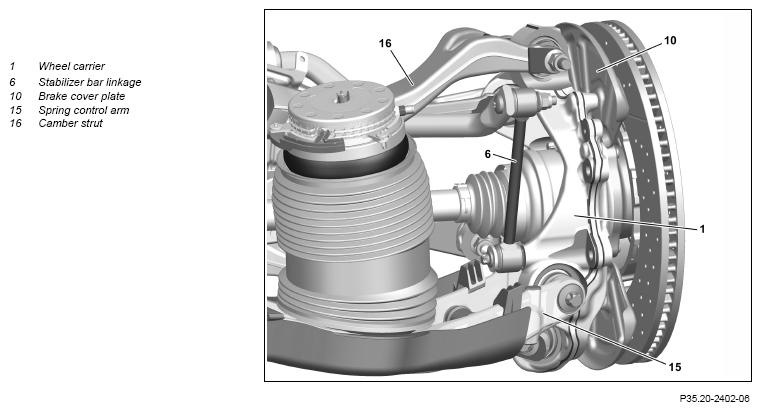

Shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

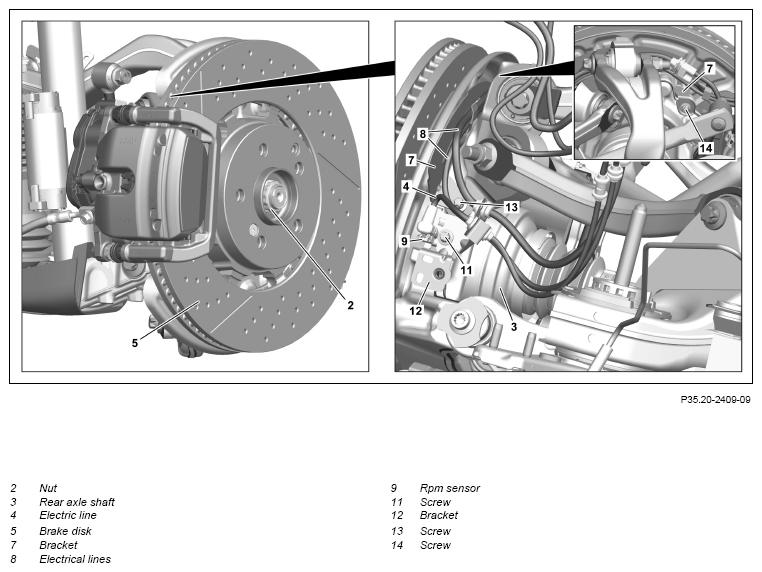

Shown on right side of vehicle

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

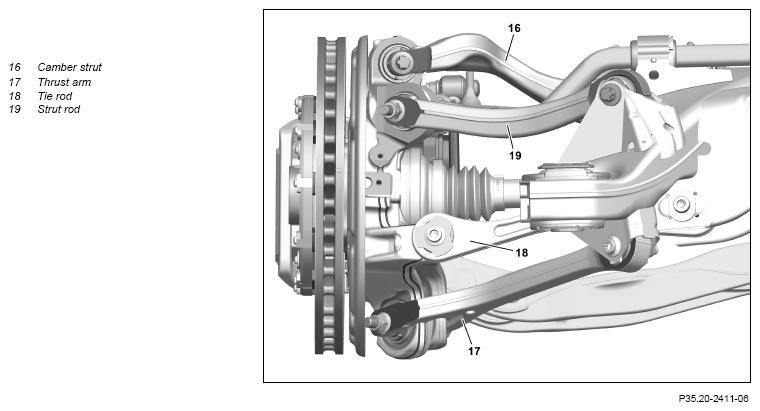

Shown on right side of vehicle

	Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove rear wheel.		AR40.10-P-1102A
2	Remove air spring.	Model 253.388/389/988/989 with code 489 (AIR BODY CONTROL)	AR32.22-P-1500LWX
3	Remove shock absorber.		AR32.25-P-0110LW
4	Operate electric parking brake and unscrew nut (2) from rear axle shaft (3).	Replace nut (2) and double-lock it
		Nut rear axle shaft to wheel bearing	*BA35.30-P-1001-01N
5	Remove brake disk (5).		AR42.10-P-0220EWE
6	Remove torsion bar linkage (6) from wheel carrier (1).		AR32.35-P-3329LWX
7	Unhook electric lines (8) from holder (7).
8	Remove screw/bolt (11).	Bolt, RPM sensor to wheel carrier	*BA42.30-P-1001-02K
9	Remove RPM sensor (9) with holder (12) and place to one side with electric lines (4, 8) attached.
10	Remove thrust arm (17) from wheel carrier (1).	Bolt, thrust arm to wheel carrier If a screw with multi-point socket profile is installed. ↓ Use the screwdriver bit.	*BA35.20-P-1002-05J
		Screwdriver bit	Fig 2
11	Remove spring link (15) from wheel carrier (1).	Bolt, spring control arm to wheel carrier	*BA35.20-P-1002-01I
12	Remove tie rod (18) from wheel carrier (1).	Bolt, tie rod to wheel carrier If a screw with multi-point socket profile is installed. ↓ Use the screwdriver bit.	*BA35.20-P-1001-04M
		Screwdriver bit	Fig 2
13	Remove strut rod (19) from wheel carrier (1).	Bolt, strut rod to wheel carrier If a screw with multi-point socket profile is installed. ↓ Use the screwdriver bit.	*BA35.20-P-1002-03L
		Screwdriver bit	Fig 2
14	Remove camber strut (16) from wheel carrier (1).	Bolt, camber strut to wheel carrier If a screw with multi-point socket profile is installed. ↓ Use the screwdriver bit.	*BA35.20-P-1002-02L
		Screwdriver bit	Fig 2
15	Remove wheel carrier (1) from rear axle shaft (3).	If the rear axle shaft (3) is firmly seated in the rear axle shaft flange. ↓ Detach rear axle shaft (3) from rear axle shaft flange.
			AR35.30-P-0115-03LF
		Extraction and insertion tool	Fig 1
		SI Bracket	Fig 3
16	Press new rear axle shaft flange into angular-contact ball bearing up to end stop.	When replacing the wheel carrier (1).
			AR35.20-P-0130LW
		The new wheel carrier (1) is supplied with angular-contact ball bearings only. The angular contact ball bearing does not need to be removed from the new wheel carrier (1).
17	Remove brake cover plate (10) from wheel carrier (1).	When replacing the wheel carrier (1).
		Screw/bolt, rear axle brake cover plate to hub/rotor assembly	*BA42.10-P-1004-06J
18	Remove screws (13, 14) and remove holder (7).	When replacing the wheel carrier (1).
19	Install in the reverse order.
20	Perform chassis alignment.		AR40.20-P-0200LW

TIE ROD

Number	Designation			Model 253
BA35.20-P-1001-04M	Bolt, tie rod to wheel carrier	Stage 1	Nm	50
BA35.20-P-1001-04M	Bolt, tie rod to wheel carrier	Stage 2	∠°	90

SPRING CONTROL ARM

Number	Designation			Model 253
BA35.20-P-1002-01I	Bolt, spring control arm to wheel carrier	Stage 1	Nm	80
BA35.20-P-1002-01I	Bolt, spring control arm to wheel carrier	Stage 2	∠°	90

CAMBER STRUT

Number	Designation			Model 253
BA35.20-P-1002-02L	Bolt, camber strut to wheel carrier	Stage 1	Nm	50
BA35.20-P-1002-02L	Bolt, camber strut to wheel carrier	Stage 2	∠°	90

STRUT ROD

Number	Designation				Model 253
BA35.20-P-1002-03L	Bolt, strut rod to wheel carrier	M12	Stage 1	Nm	50
BA35.20-P-1002-03L	Bolt, strut rod to wheel carrier	M12	Stage 2	∠°	90

THRUST ARM

Number	Designation			Model 253
BA35.20-P-1002-05J	Bolt, thrust arm to wheel carrier	Stage 1	Nm	50
BA35.20-P-1002-05J	Bolt, thrust arm to wheel carrier	Stage 2	∠°	90

REAR AXLE SHAFT

Number	Designation		Model 253
BA35.30-P-1001-01N	Nut, rear axle shaft to wheel bearing	Nm	350

BRAKE DISKS, BRAKE COVER PLATE

Number	Designation			Model 253
BA42.10-P-1004-06J	Screw/bolt, rear axle brake cover plate to hub/rotor assembly	M6	Nm	8

REAR AXLE RPM SENSOR

Number	Designation		Model 253
BA42.30-P-1001-02K	Bolt, RPM sensor to wheel carrier	Nm	8

Fig 1: Identifying Extraction And Insertion Tool (210 589 03 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Bracket (210 589 01 40 00)

Courtesy of MERCEDES-BENZ USA
