Remove/Install Rear Elastomer Bearing For Rear Axle Differential Mounting - AR35.10-P-0052MNA

Model 205.386/387/486/487

Model 253.388/389/988/989

Courtesy of MERCEDES-BENZ USA

	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install

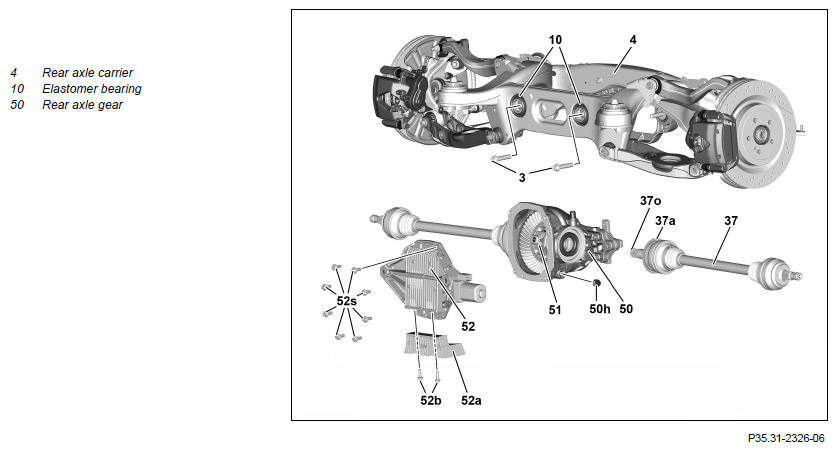

1	Remove rear axle differential (50) from rear axle carrier (4)		AR35.31-P-0522MNA
2	Press elastomer bearings (10) from rear axle carrier (4)		AR35.10-P-0050-02LW
		Hollow piston cylinder	Fig 4
		Extraction and installation tool	Fig 3
		Hand pump	Fig 2
		Hydraulic hose (complete)	Fig 5
		Extraction and insertion tool	Fig 1
3	Install in the reverse order
