Remove/Install Elastomer Bearing Of Thrust Arm On Wheel Carrier - AR35.20-P-3403LWX

Model 253.388/389/988/989

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove rear wheel		AR40.10-P-1102A
2	Detach thrust arm (1) from wheel carrier (2)	The screwdriver bit is to be used when a bolt with a multi-socket tooth profile is fitted.
		Screwdriver bit	Fig 1
3	Use a suitable screwdriver (3) to secure thrust arm (1) against folding up	Clamp a rag (4) between the thrust arm (1) and the wheel carrier (2). Otherwise, the wheel carrier (2) will be damaged.
4	Grease spindle of extraction and insertion tool (6) with rolling-element bearing grease
	High temperature antifriction bearing grease (NLGI grade 2)		BB00.40-P-0265-01A
		Extraction and insertion tool	Fig 2
5	Position extraction and insertion tool (6), as shown, onto wheel carrier (2) and elastomer bearing (5)	Make sure that the extraction and insertion tool (6) is seated correctly.
		Extraction and insertion tool	Fig 2
6	Pull elastomer bearing (5) out of wheel carrier (2) in direction of arrow and remove
	Install
7	Grease spindle of extraction and insertion tool (6) again with rolling-element bearing grease
	High temperature antifriction bearing grease (NLGI grade 2)		BB00.40-P-0265-01A
		Extraction and insertion tool	Fig 2
8	Position extraction and insertion tool (6) with new elastomer bearing (5) on wheel carrier (2) as shown	Make sure that the extraction and insertion tool (6) is seated correctly.
		Extraction and insertion tool	Fig 2
9	Draw elastomer bearing (5) in direction of arrow into wheel carrier (2)	Only pull in the elastomer bearing (5) until the protrusion at the wheel carrier (2) is the same on both sides. The elastomer bearing (5) must be seated in the center of the wheel carrier (2).
10	Detach extraction and insertion tool (6)	Extraction and insertion tool	Fig 2
11	Remove screwdriver (3) and rag (4)
12	Attach thrust arm (1) to wheel carrier (2)	The screwdriver bit is to be used when a bolt with a multi-socket tooth profile is fitted.
		Bolt, thrust arm to wheel carrier	*BA35.20-P-1002-05J
		Screwdriver bit	Fig 1
13	Remount the rear wheel		AR40.10-P-1102A
14	Perform wheel alignment check		AR40.20-P-0200LW

THRUST ARM

Number	Designation			Model 253
BA35.20-P-1002-05J	Bolt, thrust arm to wheel carrier	Stage 1	Nm	50
		Stage 2	∠°	90

Fig 1: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA

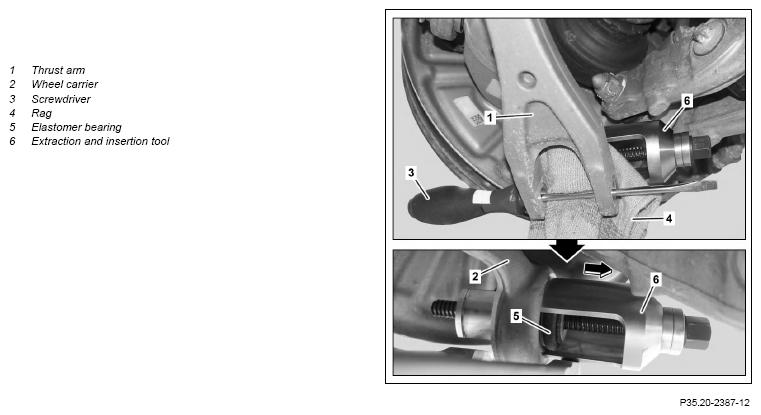

Fig 2: Identifying Extraction And Insertion Tool (205 589 01 43 00)

Courtesy of MERCEDES-BENZ USA
