Locate Noises From Rear Axle - AR35.00-P-2000A

Model all

Example shown on model 204

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Example shown on model 211 front axle

	Remove/install

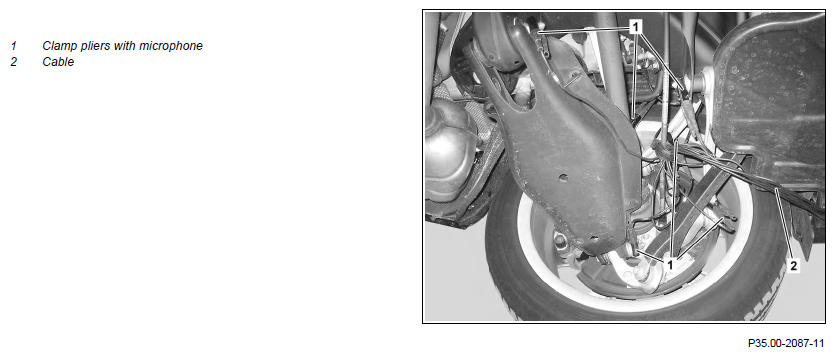

1	Attach clamp pliers with microphone (1)	Attach the clamp pliers as close as possible to suspect components. For evaluation purposes (normal noise - defect noise) listen to the same components, e.g. compare noise from left supporting ball joint with right supporting ball joint. Up to 6 clamp pliers with microphone can be attached. Attach clamp pliers so that while driving the freedom of movement of chassis components is not impaired. Ultrasonic leak detector and Noise diagnosis
2	Fasten line (2) of clamp pliers with microphone (1) (arrows)	Fasten the lines with Velcro strip, cable ties or adhesive tape. Route the lines so that while driving the freedom of movement of the chassis components is not impaired.

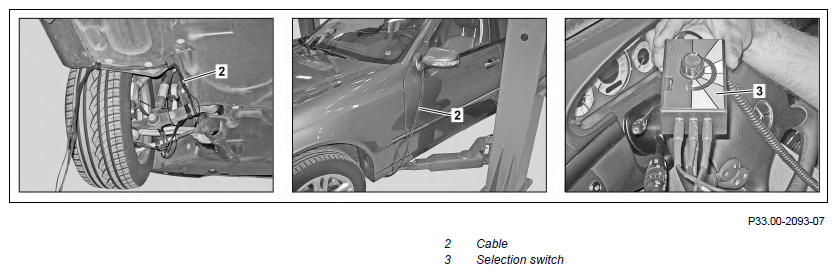

3	Guide line (2) of clamp pliers with microphone (1) into the interior	Route the lines so that contact with the road is ruled out. Route lines so that damage by a door or window is ruled out.
4	Connect line (2) to the selection switch (3)	The lines and connectors on the selection switch are color coded. Note the color assignment of components which are to be listened to.
5	Carry out road test for noise diagnosis
6	Locate defective components by listening to the microphone	If necessary: ↓ Replace faulty components.
