Bring Up Workshop Level On Instrument Cluster - AP00.20-P-0046A
Model 117, 156, 166, 172, 176, 190, 197, 207, 212, 217, 218, 231, 242, 246, 253 (except 253.99), 292
Model 204 with code 442 (Luxury multifunction steering wheel)
Model 205 up to model year 2019
Model 222 up to model year 2018
Model 463 as of model year 2013 up to model year 2019

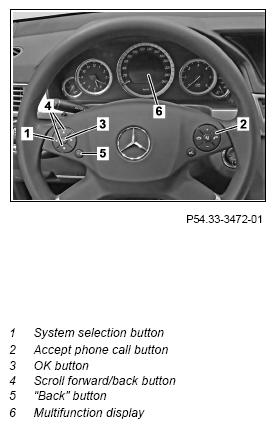

Shown on model 212.002, valid for model 197, 204 with code 442 (Comfort multifunction steering wheel), 207, 212

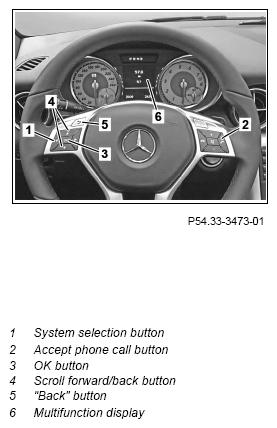

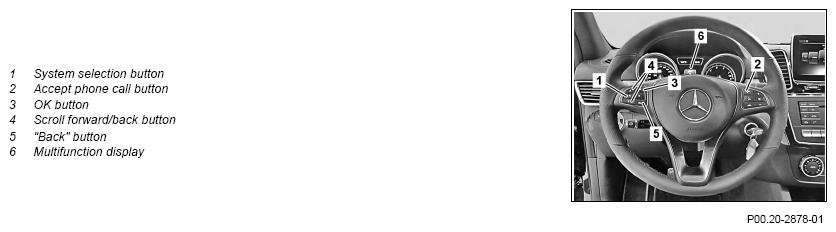

Shown on model 172, valid for model 117, 156, 166, 172, 176, 218, 231, 242, 246, 463 as from 01.06.12

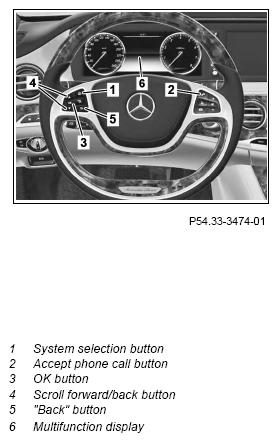

Shown on model 222 up to model year 2018, valid for model 190, 205 up to model year 2019, 217, 253 (except 253.99), 222 up to model year 2018
Shown on model 292, valid for model 292
| Preparatory activity | |||
| 1 | Switch electronic ignition lock control unit to position "1" (circuit 15R). | ||
| Open workshop level | |||
| 2 | Press system selection button (1) repeatedly until menu item "Trip" is highlighted in multifunction display (6), and then confirm with OK button (3). | ||
| 3 | Press scroll forward/back button (4) repeatedly until standard "Total distance" display appears in "Trip" menu in multifunction display (6). | ||
| 4 | First press and hold down Accept phone call button (2), then also press O.K. button within 1 s (3) and hold for approx. 5 s. | "Vehicle data", "Dynamometer test", "Change brake lining" (depending on equipment installed), "ASSYST PLUS", "Head-up-display" (depending on equipment installed). |
|
| Close workshop level | |||
| 5 | Press "Back" button (5) repeatedly until standard display (total distance) appears in multifunction display (6). | ||
| Finishing activity | |||
| 6 | Switch electronic ignition lock control unit to position "0". |
