Remove/Install Rear Muffler - AR49.10-P-4952MNG
Engine 177 in model 253
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. | AS49.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Raise vehicle. | AR00.60-P-1002LWG | |

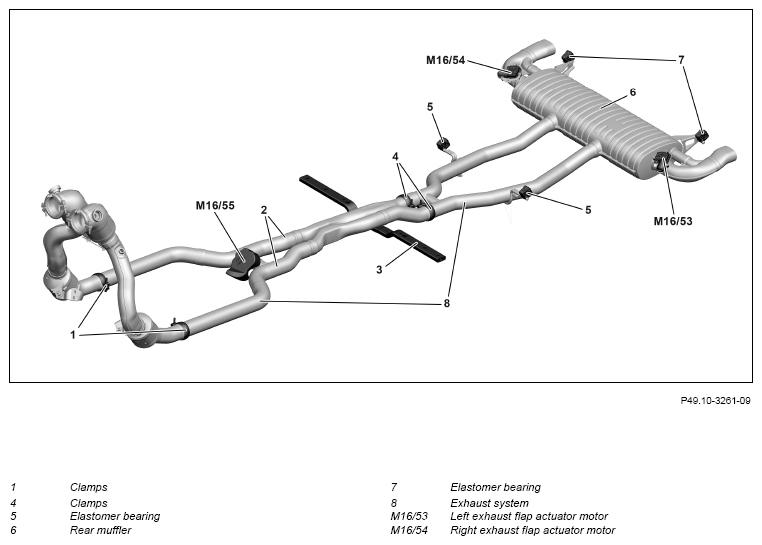

| 2 | Release electrical connectors on right exhaust flap actuator motor (M16/54) and left exhaust flap actuator motor (M16/53) and disconnect. | ||
| 3 | Remove clamps (4). | Otherwise, leaks in exhaust system (8) will occur. |
*BA49.10-P-1008-02E |
| 4 | Remove rear muffler (6) from elastomer bearings (5, 7) and remove downward. | Lubricant, rubber assembly 1 l |
*BR00.45-Z-1010-06A |
| 5 | Check elastomer bearings (5, 7) for wear and damage. | If a problem arises, ↓ Replace corresponding elastomer bearing (5, 7). |
|
| 6 | Remove combustion and corrosion residues from separating points. | ||
| 7 | Install in the reverse order. | ||
| 8 | Check installation position and clearance of the exhaust system (8). | If a problem arises, ↓ re-align exhaust system (8). |
|
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 9 | Carry out engine test run, thus testing the exhaust system (8) for leak tightness. |
EXHAUST SYSTEM
| Number | Designation | Engine 177 in model 253 | |
|---|---|---|---|
| BA49.10-P-1008-02E | Clamp, center exhaust system to rear exhaust system | Nm | 35 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 l | A 000 989 03 67 |
