Analysis Sheet For 48 V Lithium-Ion Battery, Form - OF54.10-P-3000-15FR

Model 167, 205, 213, 238, 253, 257, 290

with code B01 (48V technology)

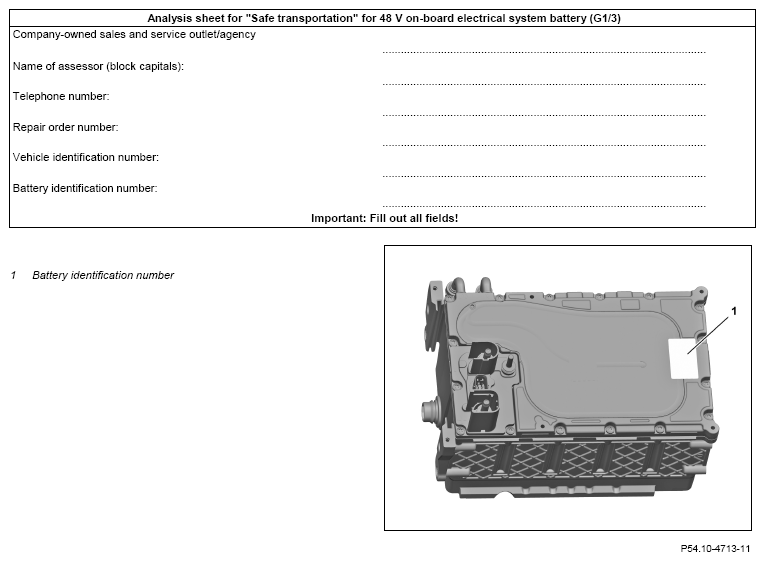

G12938494

Courtesy of MERCEDES-BENZ USA

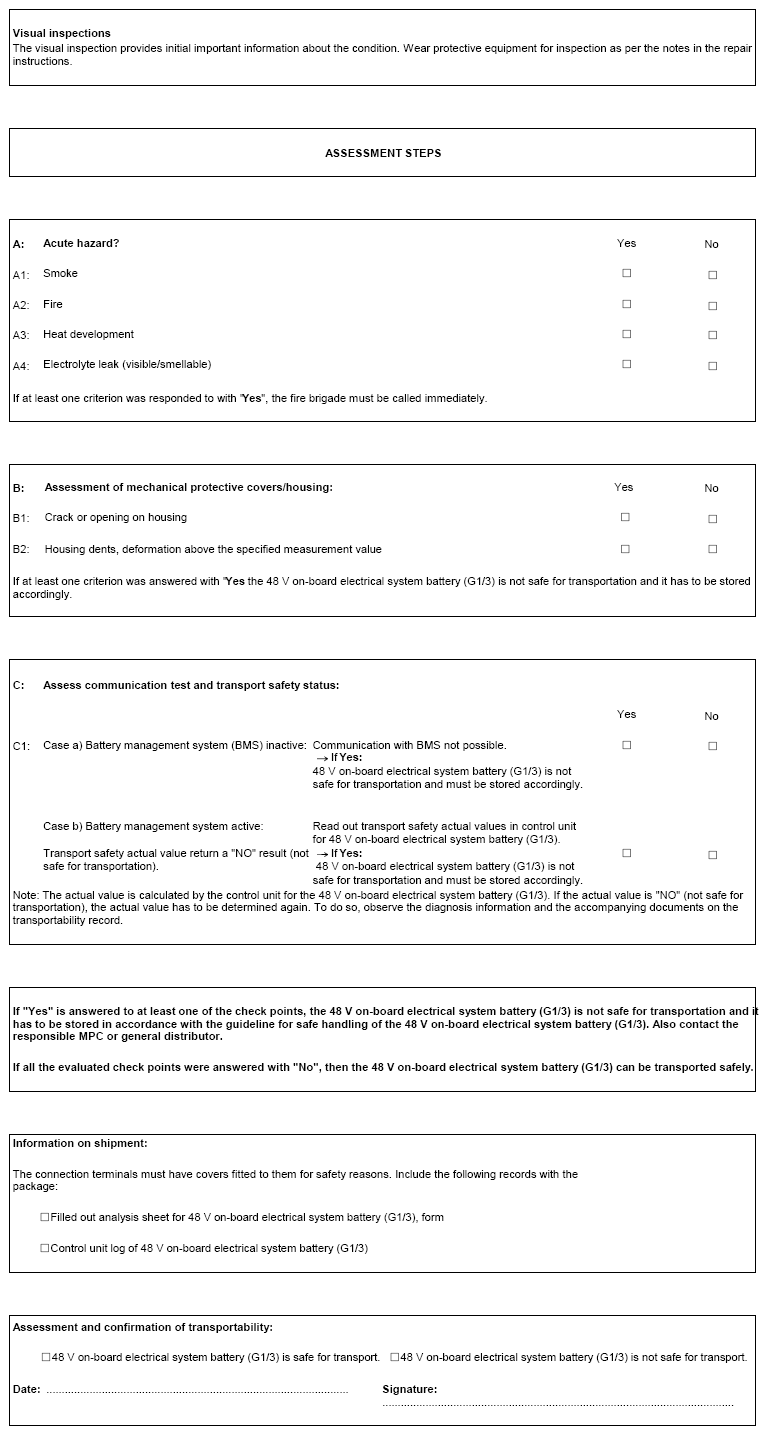

G12938495

Courtesy of MERCEDES-BENZ USA
